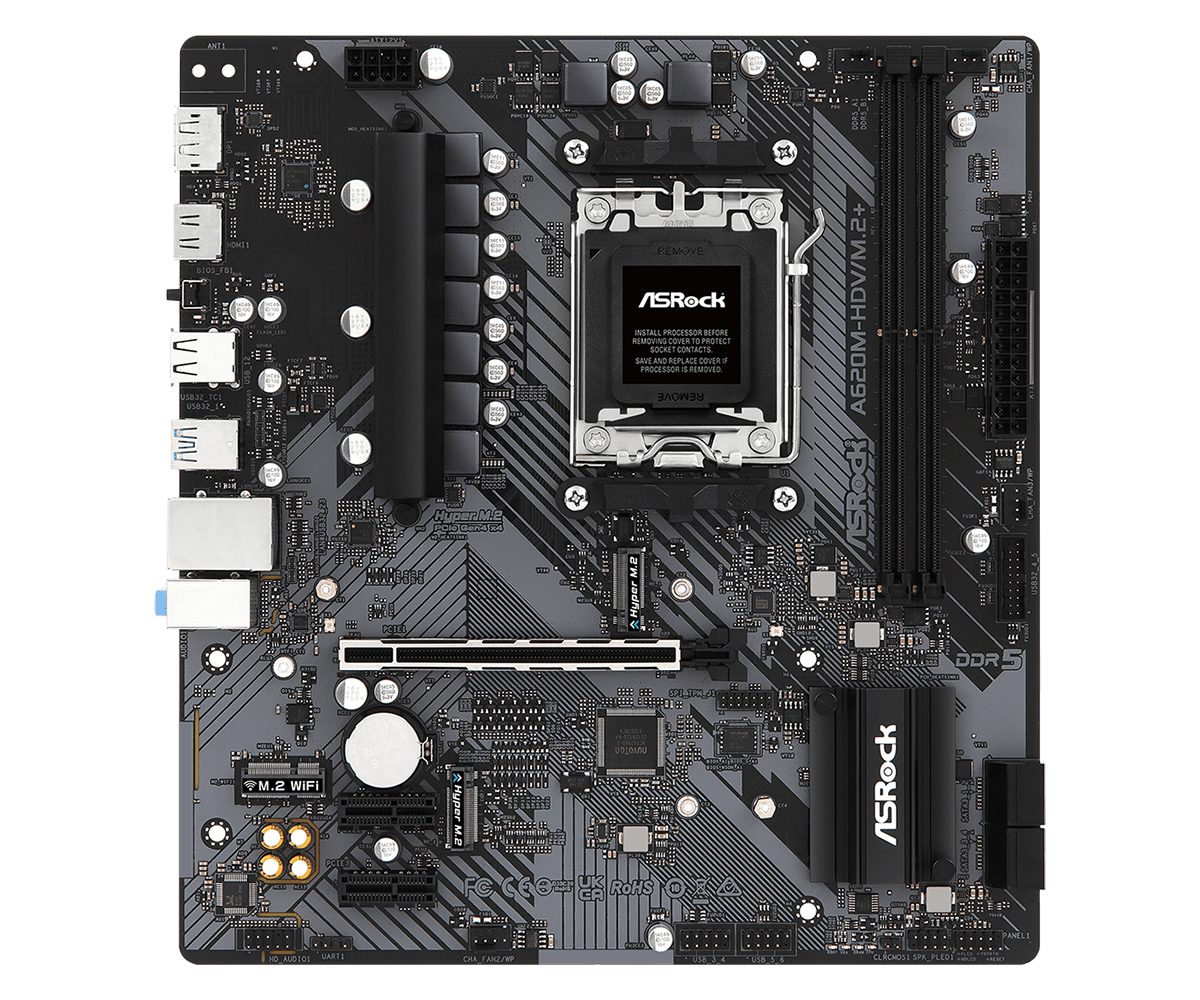

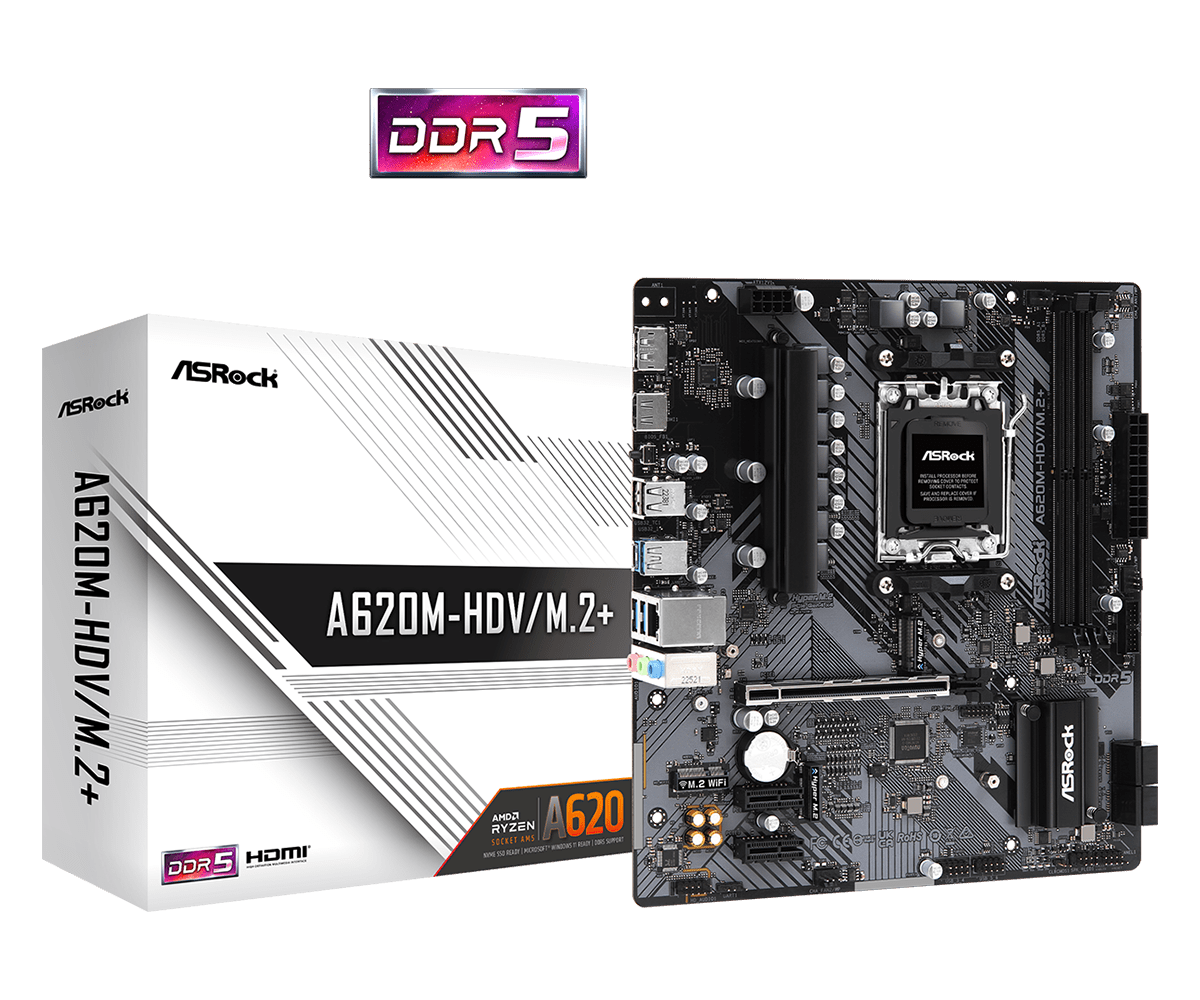

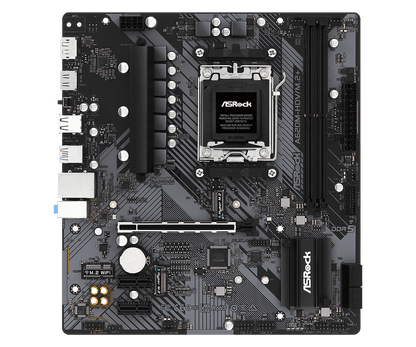

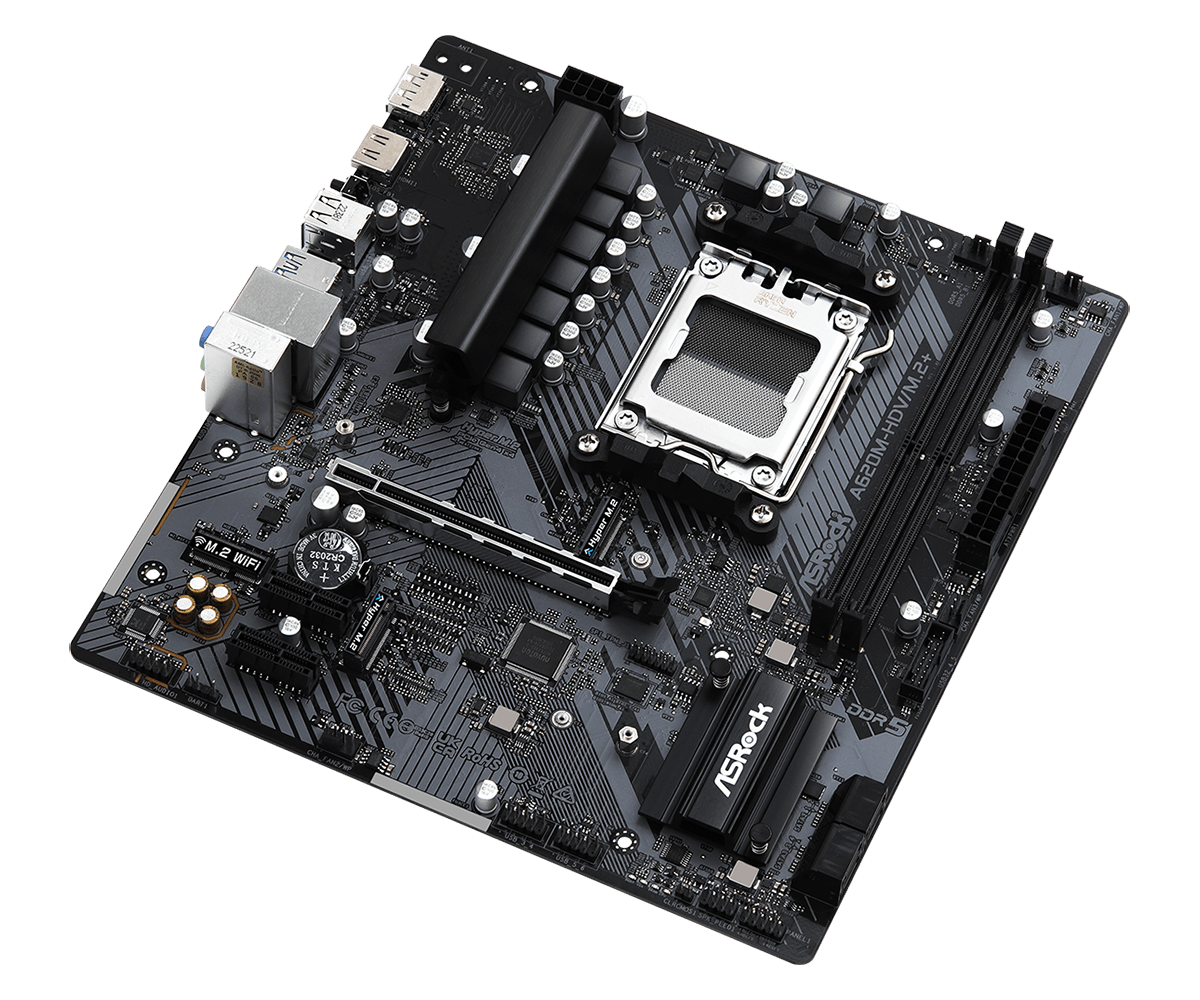

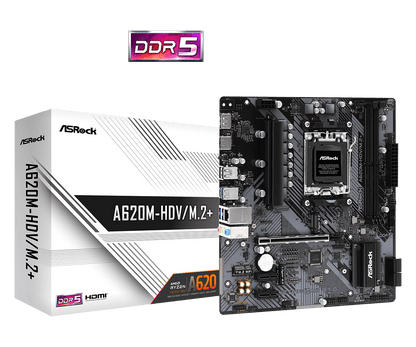

ASROCK A620M-HDV/M.2 D5 mATX

General Information

• Supported Processors:
  • AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors

Power Design

• Power Phase Design:
  • 6+1+1 Power Phase
• Power Delivery:
  • Dr.MOS for enhanced power efficiency and stability

Memory Support

• Memory Type:
  • DDR5
• Memory Slots:
  • 2 x DDR5 DIMMs
• Memory Speed:
  • Supports Dual Channel, up to 7200+ MHz (OC)

Expansion Slots

• PCIe Slots:
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 3.0 x1
• M.2 Slot for WiFi:
  • 1 x M.2 Key E for WiFi

Graphics

• Integrated Graphics:
  • AMD RDNA™ 2 Graphics* (on supported processors)
• Graphics Output Options:
  • 1 x HDMI
  • 1 x DisplayPort

Audio

• Audio Codec:
  • Realtek ALC897
• Audio Channels:
  • 7.1 Channel HD Audio
• Additional Feature:
  • Nahimic Audio for immersive sound

Storage

• M.2 Slots:
  • 2 x Hyper M.2 (PCIe Gen4 x4)
• SATA Connectors:
  • 4 x SATA3

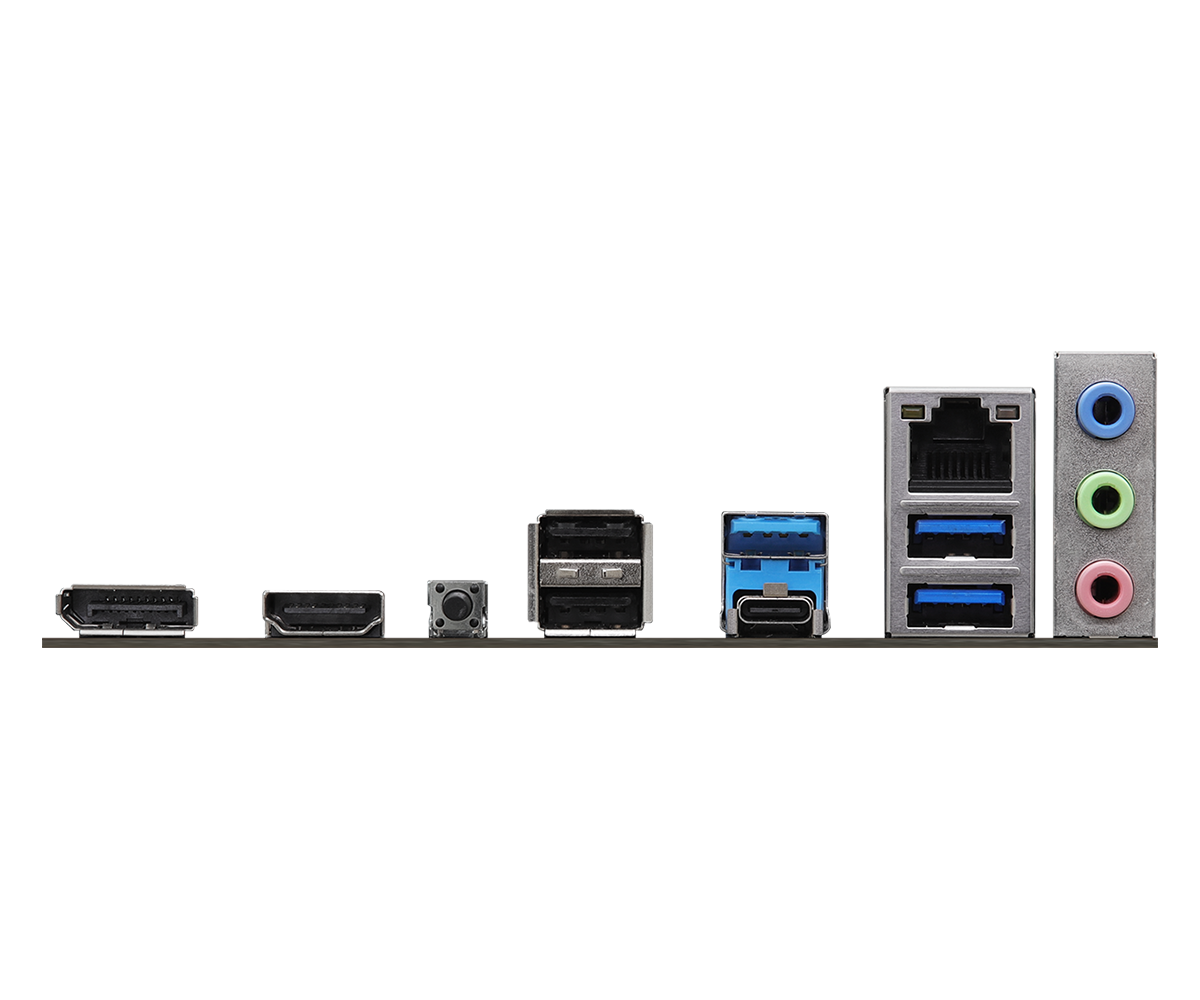

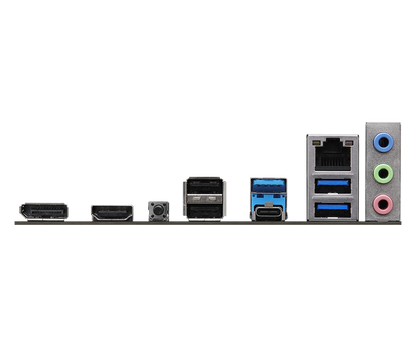

USB Ports

• USB 3.2 Gen1 (Rear):
  • 3 x Type-A
  • 1 x Type-C
• USB 3.2 Gen1 (Front):
  • 2 x USB 3.2 Gen1

Networking

• LAN:
  • Realtek Gigabit LAN

Special Features

• Additional Features:
  • Supports ASRock Auto Driver Installer
  • BIOS Flashback for easy firmware updates
