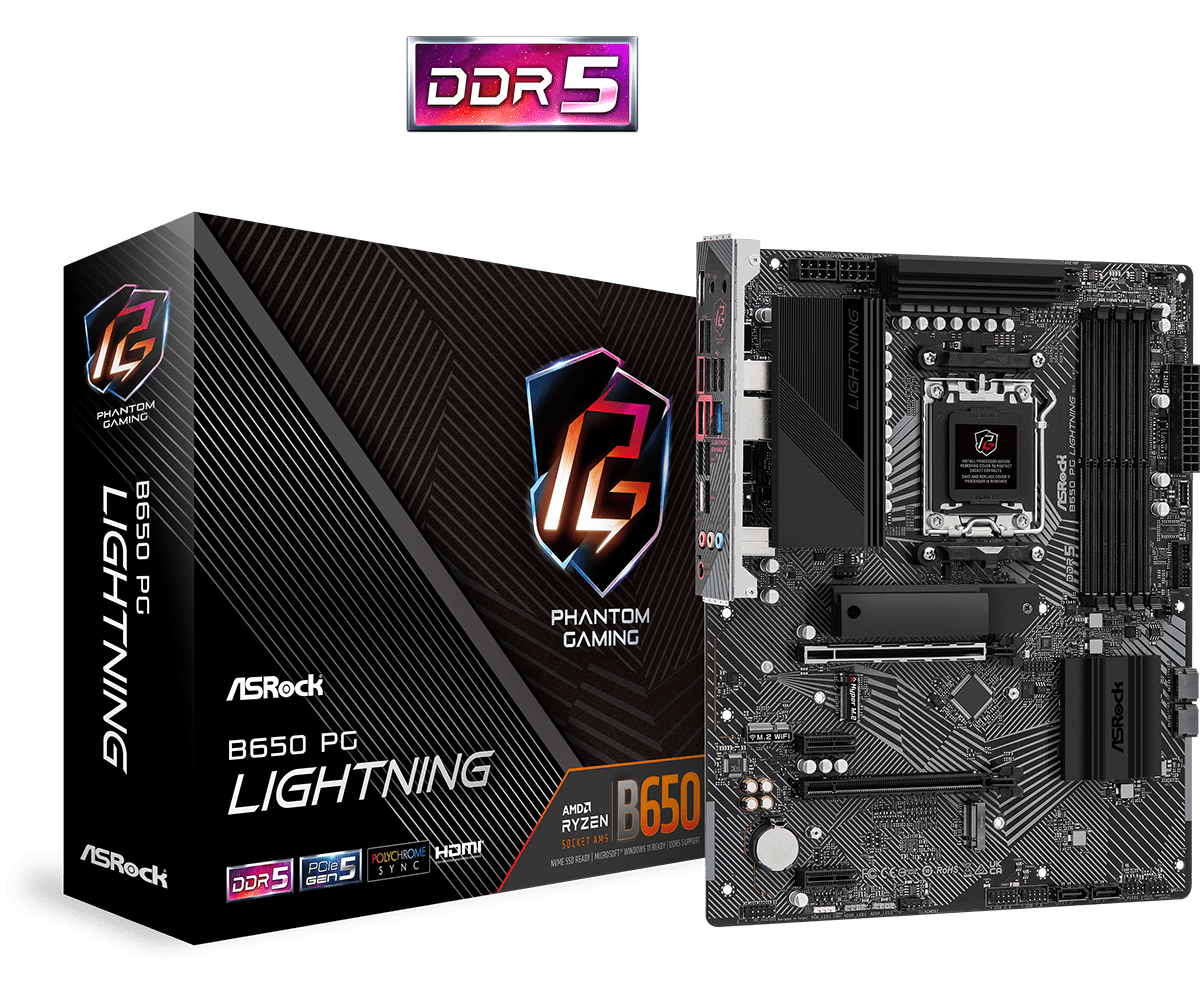

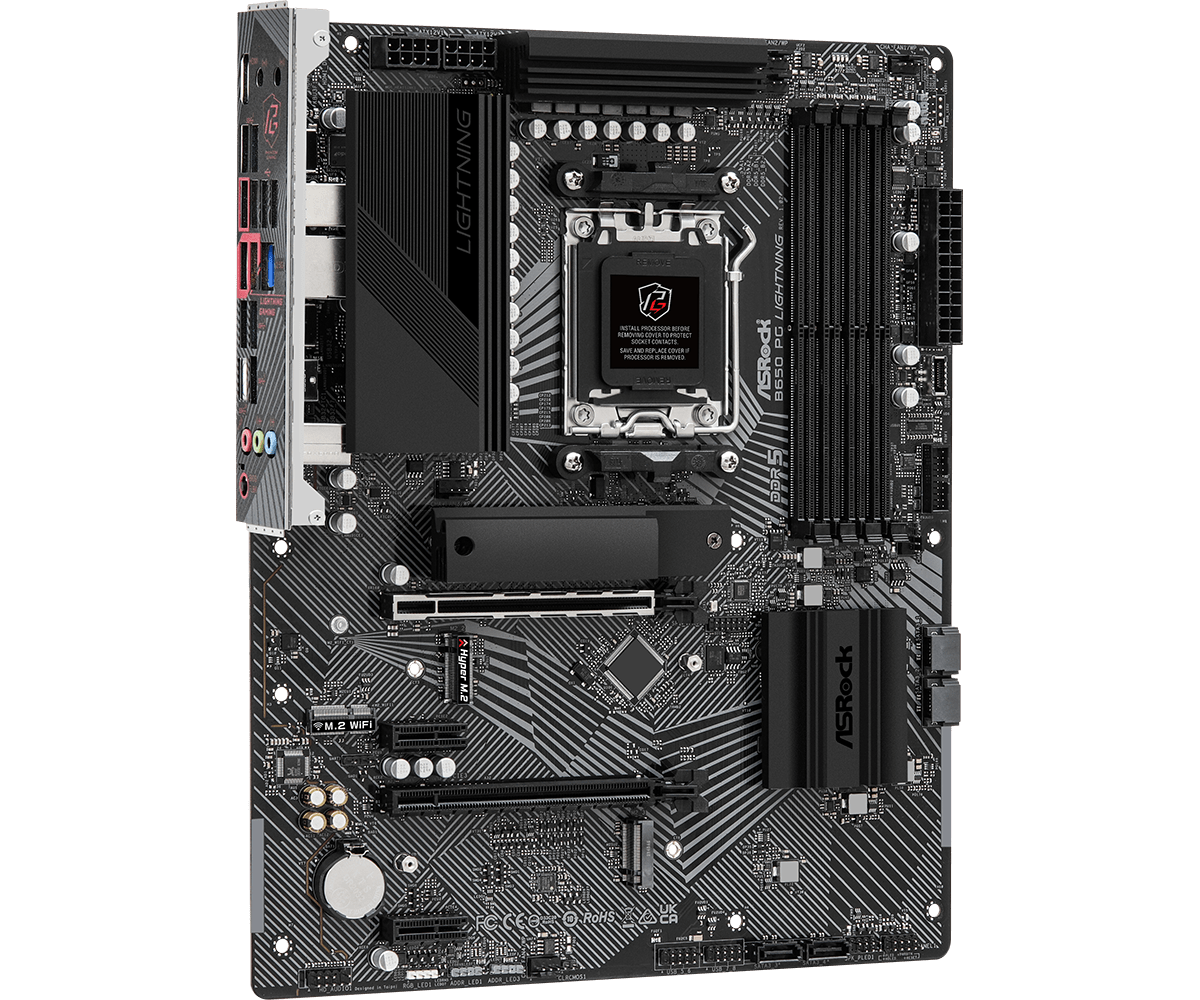

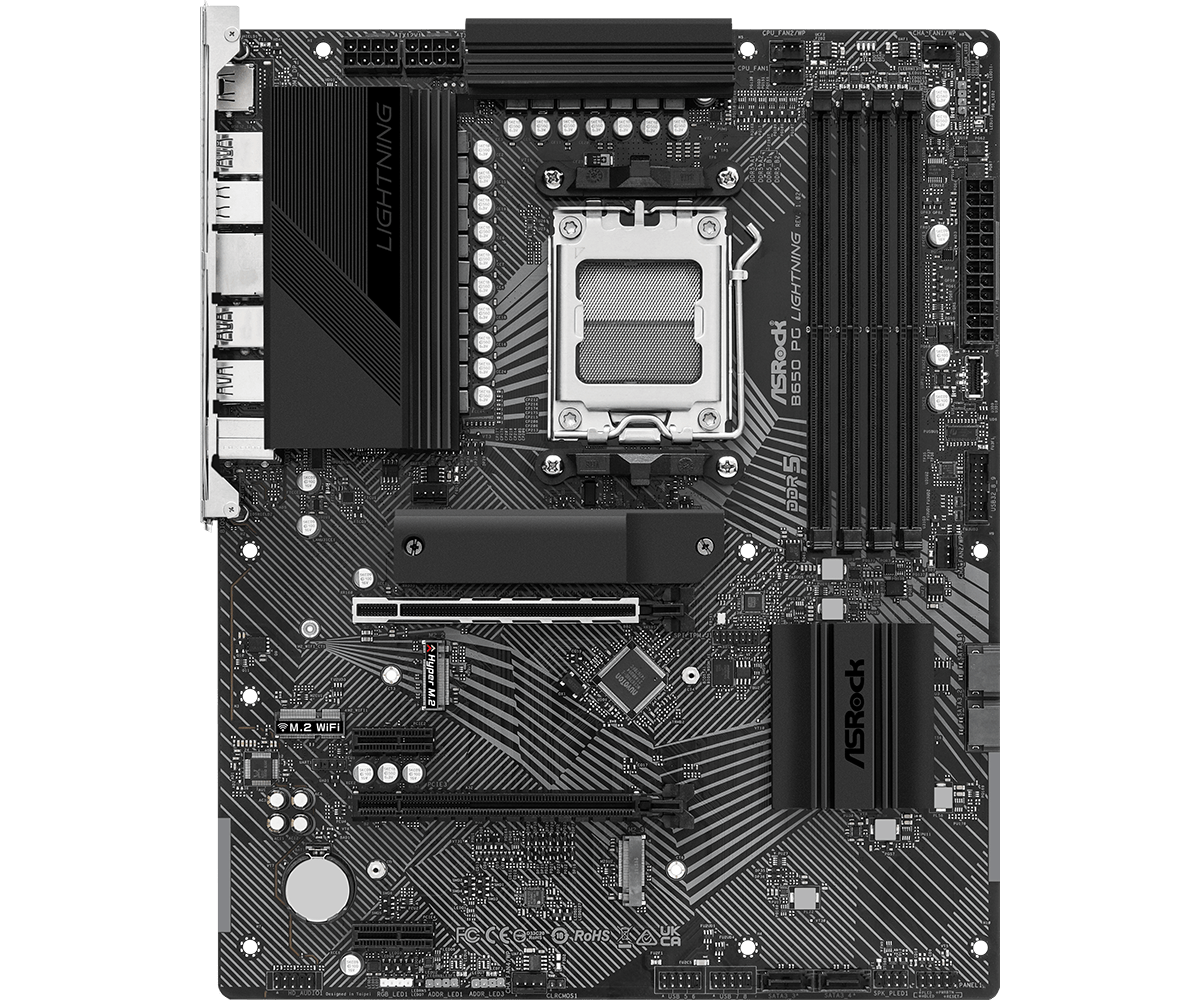

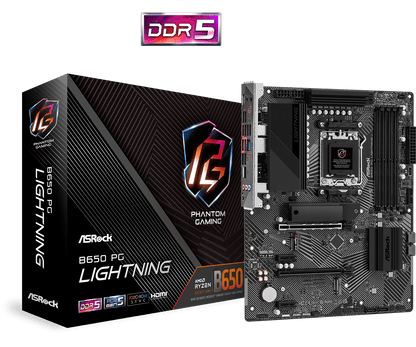

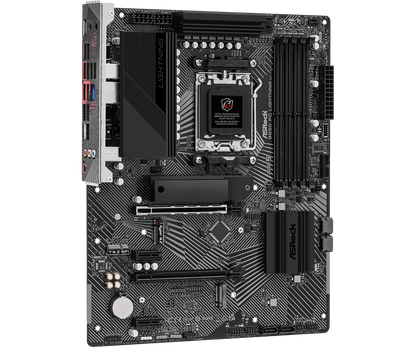

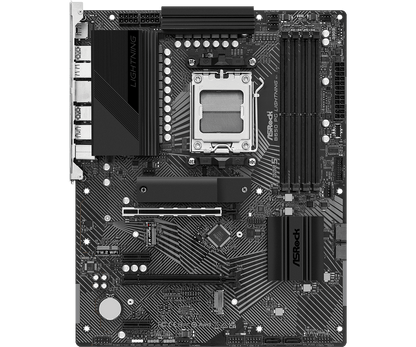

ASROCK B650 PG Lightning D5 ATX

General Information

• Supported Processors:
  • AMD Ryzen™ 9000, 8000, and 7000 Series Processors

Power Design

• Power Phase Design:
  • 14+2+1 Phase Power Design
• Power Delivery:
  • SPS (Smart Power Stage)

Memory Support

• Memory Type:
  • DDR5
• Maximum Memory Capacity:
  • 4 x DDR5 DIMMs
• Memory Speed:
  • Supports Dual Channel, up to 7200+ MHz (OC)

Expansion Slots

• PCIe Slots:
  • 2 x PCIe 4.0 x16
  • 2 x PCIe 4.0 x1
  • 1 x M.2 Key-E for Wi-Fi

Graphics Output

• Graphics Output Options:
  • 1 x HDMI

Audio

• Audio Codec:
  • Realtek ALC897
• Audio Channels:
  • 7.1 Channel HD Audio
• Additional Feature:
  • Nahimic Audio

Storage

• M.2 Slots:
  • 1 x Blazing M.2 (supports PCIe Gen5 x4)
  • 1 x Hyper M.2 (supports PCIe Gen4 x4)
  • 1 x M.2 (supports PCIe Gen4 x2)
• SATA Connectors:
  • 4 x SATA3

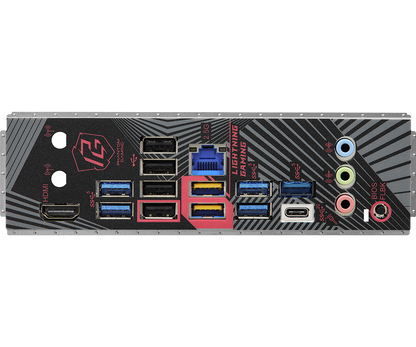

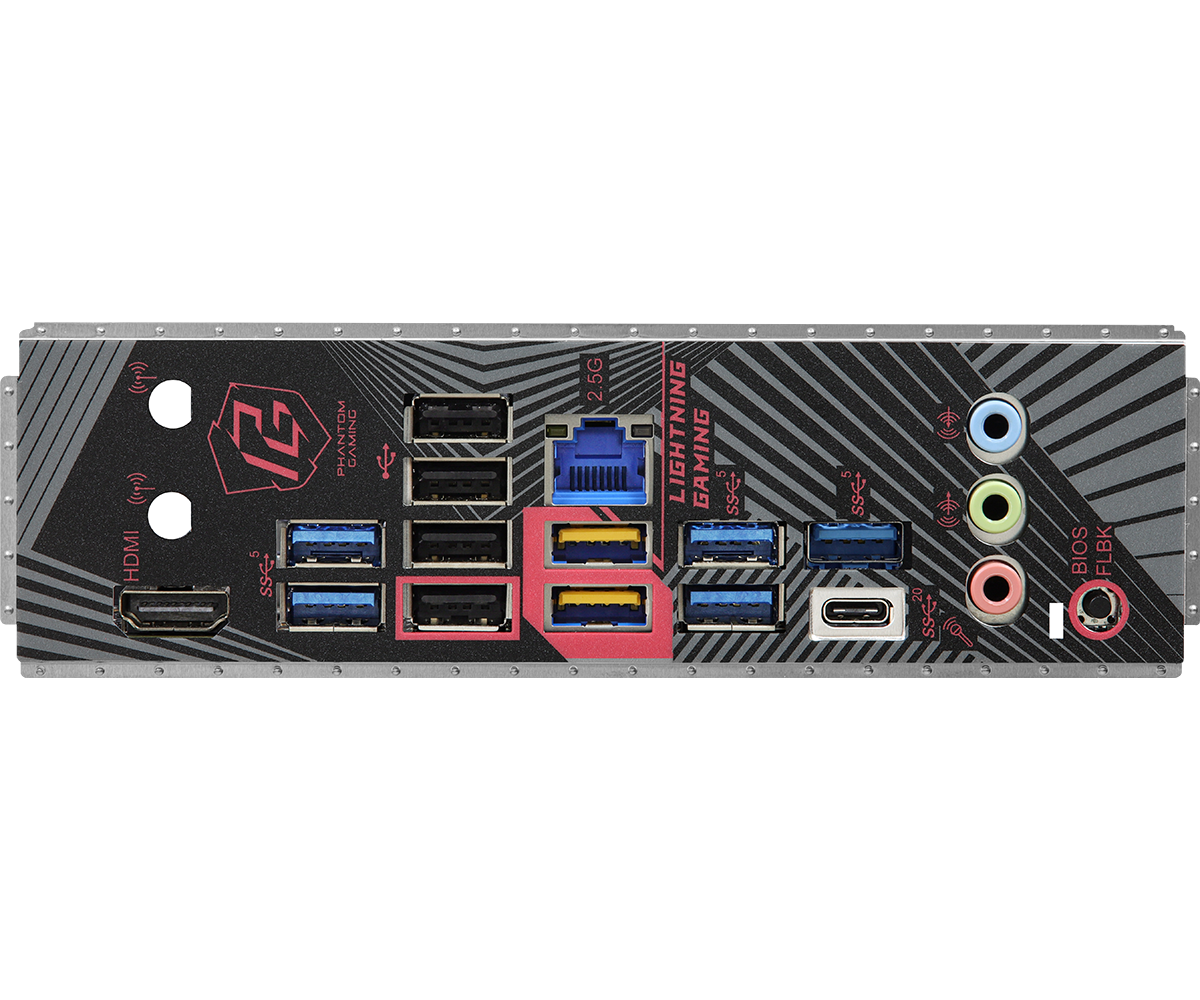

USB Ports

• USB 3.2 Gen2x2:
  • 1 x Type-C (Rear)
  • 1 x Type-C (Front)
• USB 3.2 Gen1:
  • 9 Ports (7 Rear, 2 Front)
• USB 2.0:
  • 8 Ports (4 Rear, 4 Front)

Networking

• LAN:
  • Realtek 2.5G LAN
