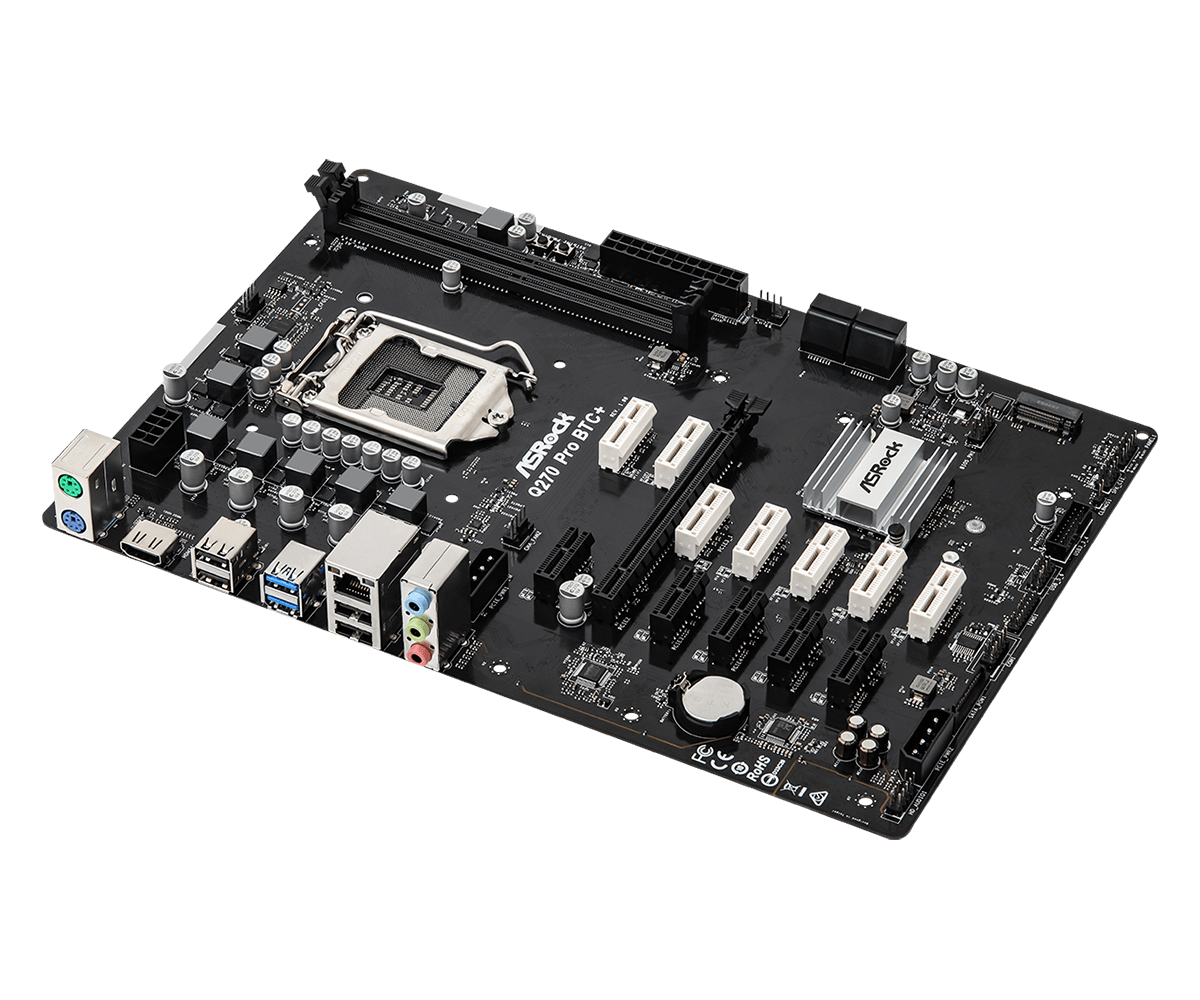

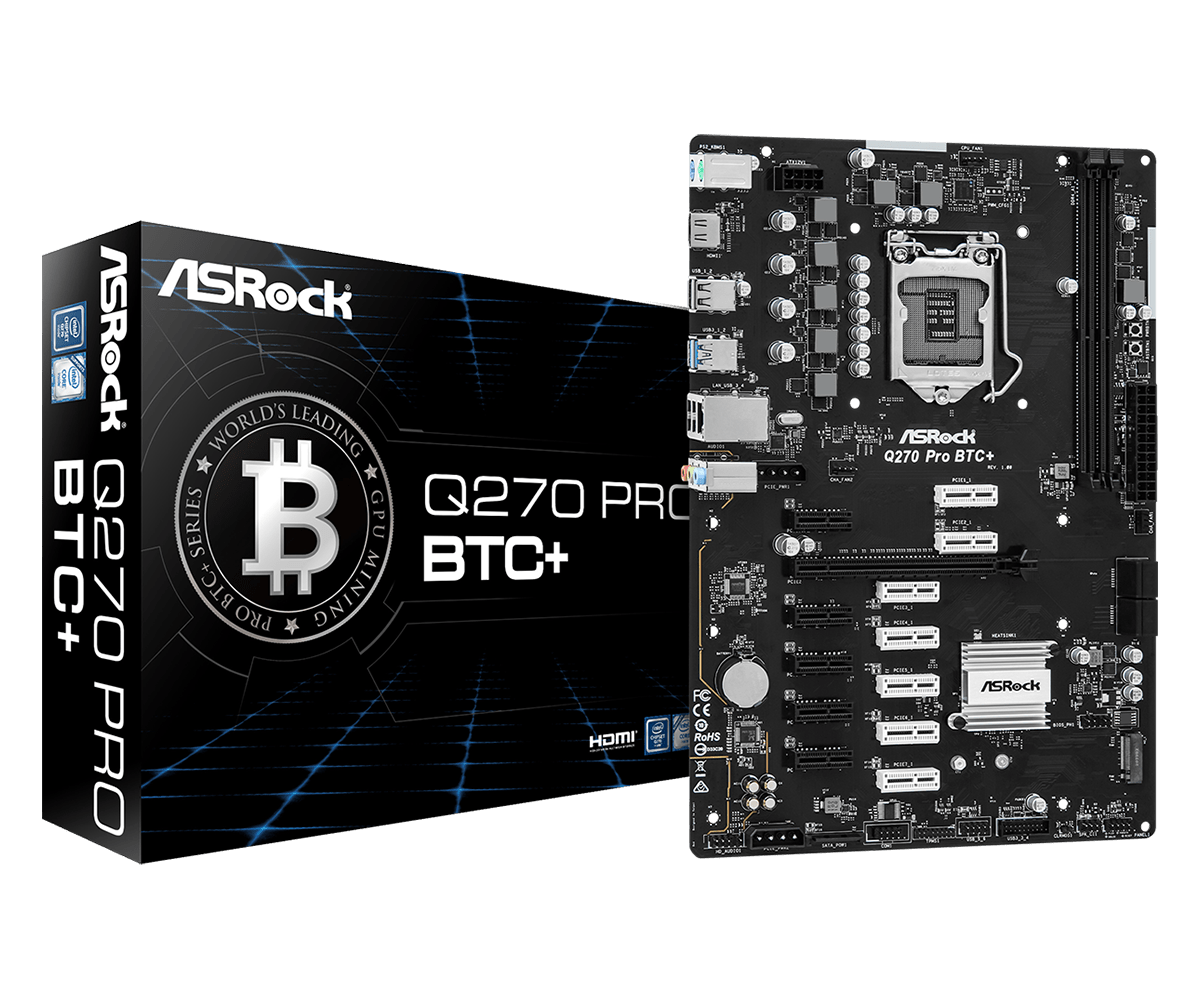

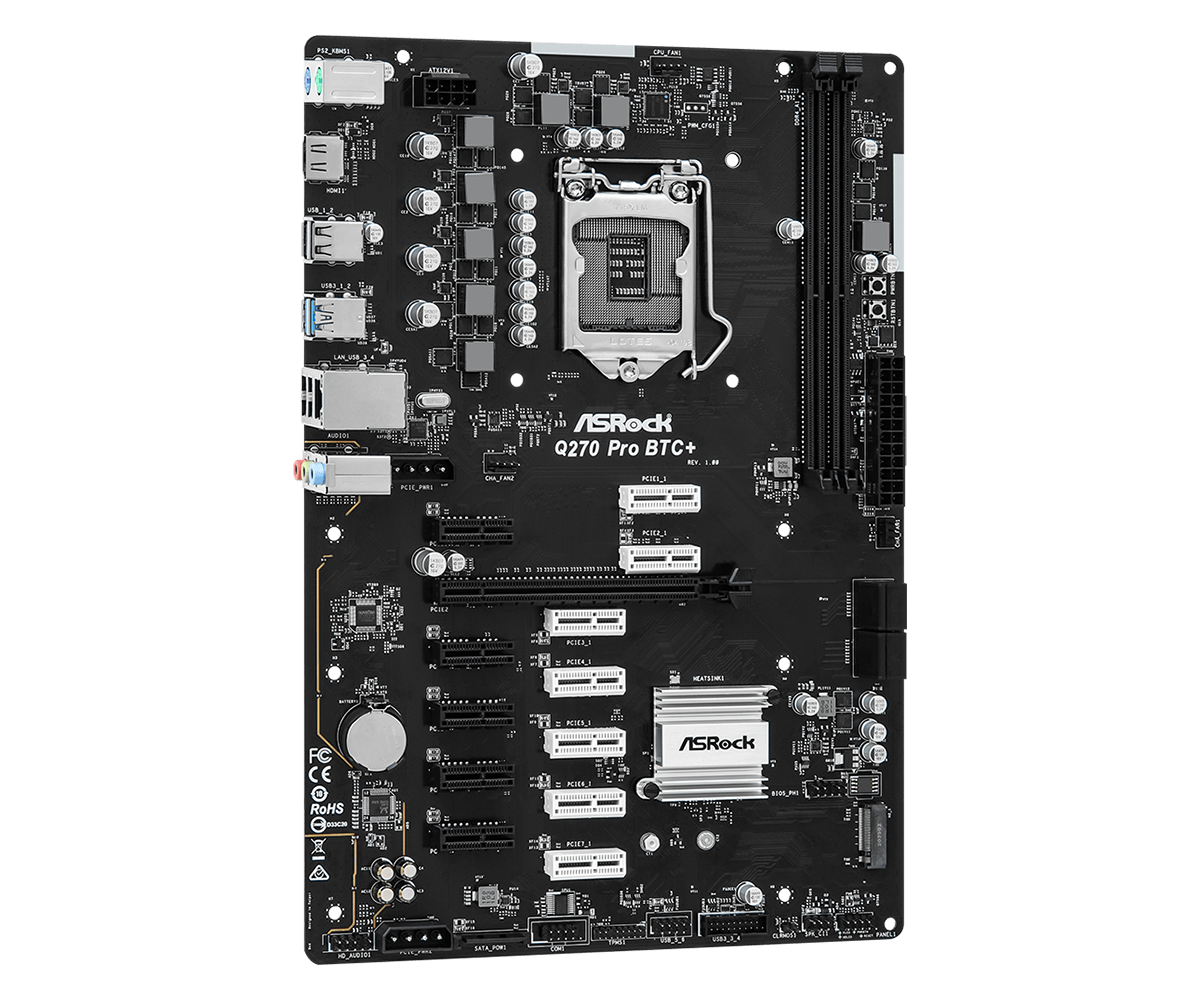

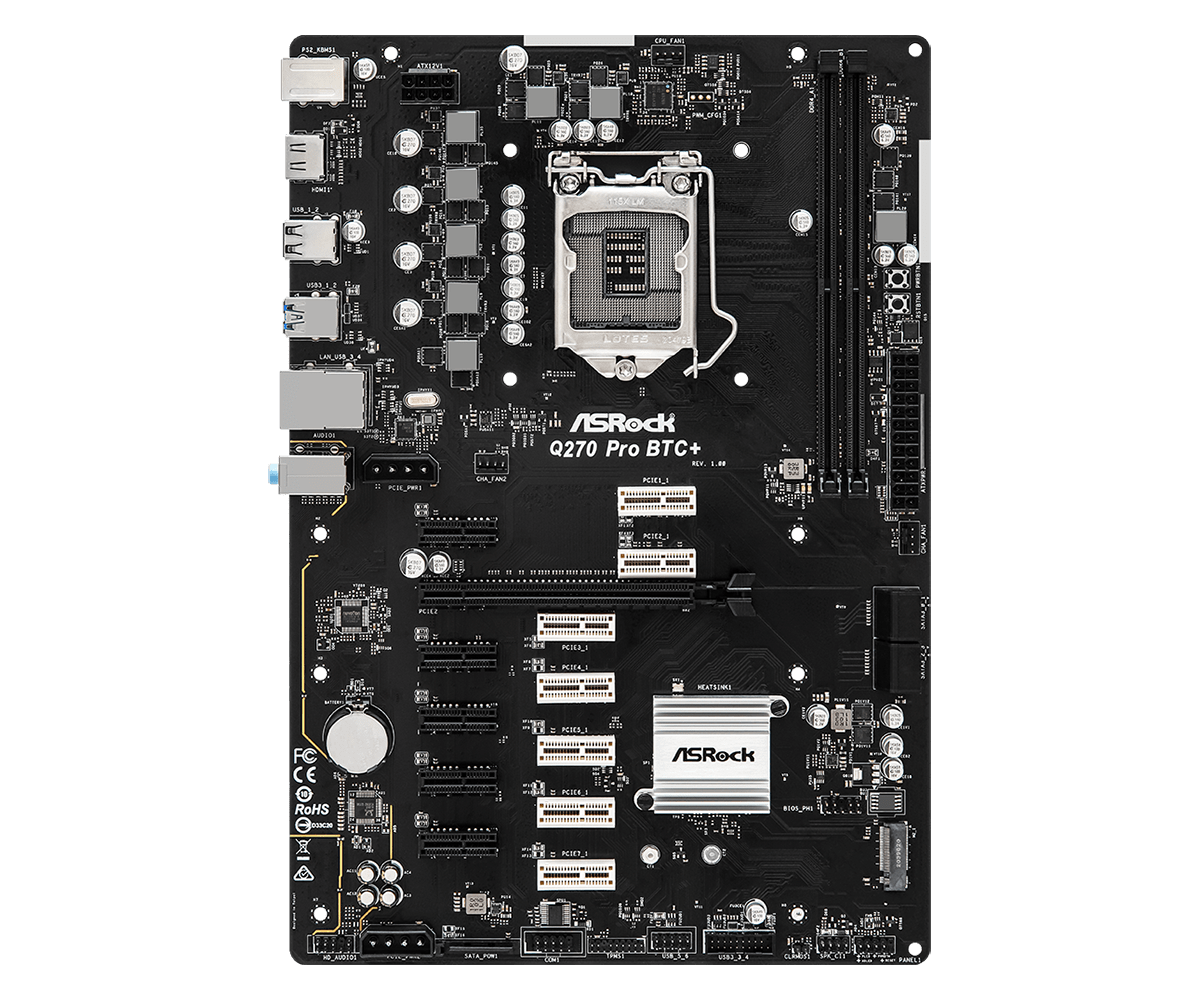

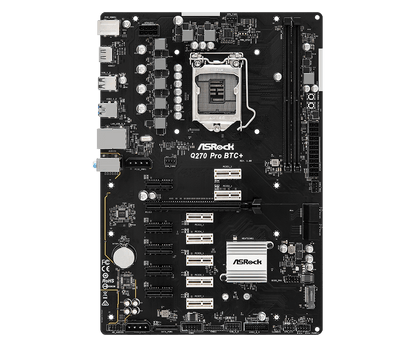

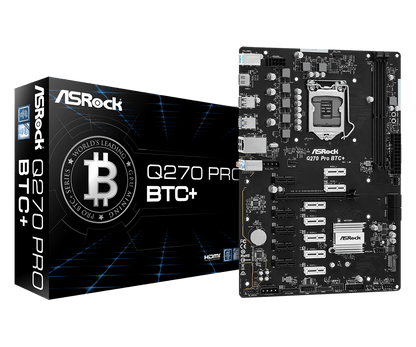

ASROCK Q270 PRO BTC+

General Information

• Supported Processors:
  • 7th and 6th Generation Intel® Core™ i5, i3, Pentium®, and Celeron® Processors
  • Compatible with LGA 1151 Socket

Memory Support

• Memory Type:
  • DDR4
• Memory Speed:
  • Supports DDR4 2400/2133 MHz

Expansion Slots

• PCIe Slots:
  • 1 x PCIe 3.0 x16 for graphics card or high-performance devices
  • 12 x PCIe 3.0 x1 for additional mining or other expansion devices
  • Note: Ideal for cryptocurrency mining due to extensive PCIe slots

Graphics

• Integrated Graphics Output Option:
  • HDMI for video output

Audio

• Audio Codec:
  • Realtek ALC897
• Audio Channels:
  • 7.1 Channel HD Audio for enhanced sound quality

Storage

• M.2 Slot:
  • 1 x M.2 (SATA3) for SSD storage
• SATA Connectors:
  • 4 x SATA3 for traditional HDDs or SSDs

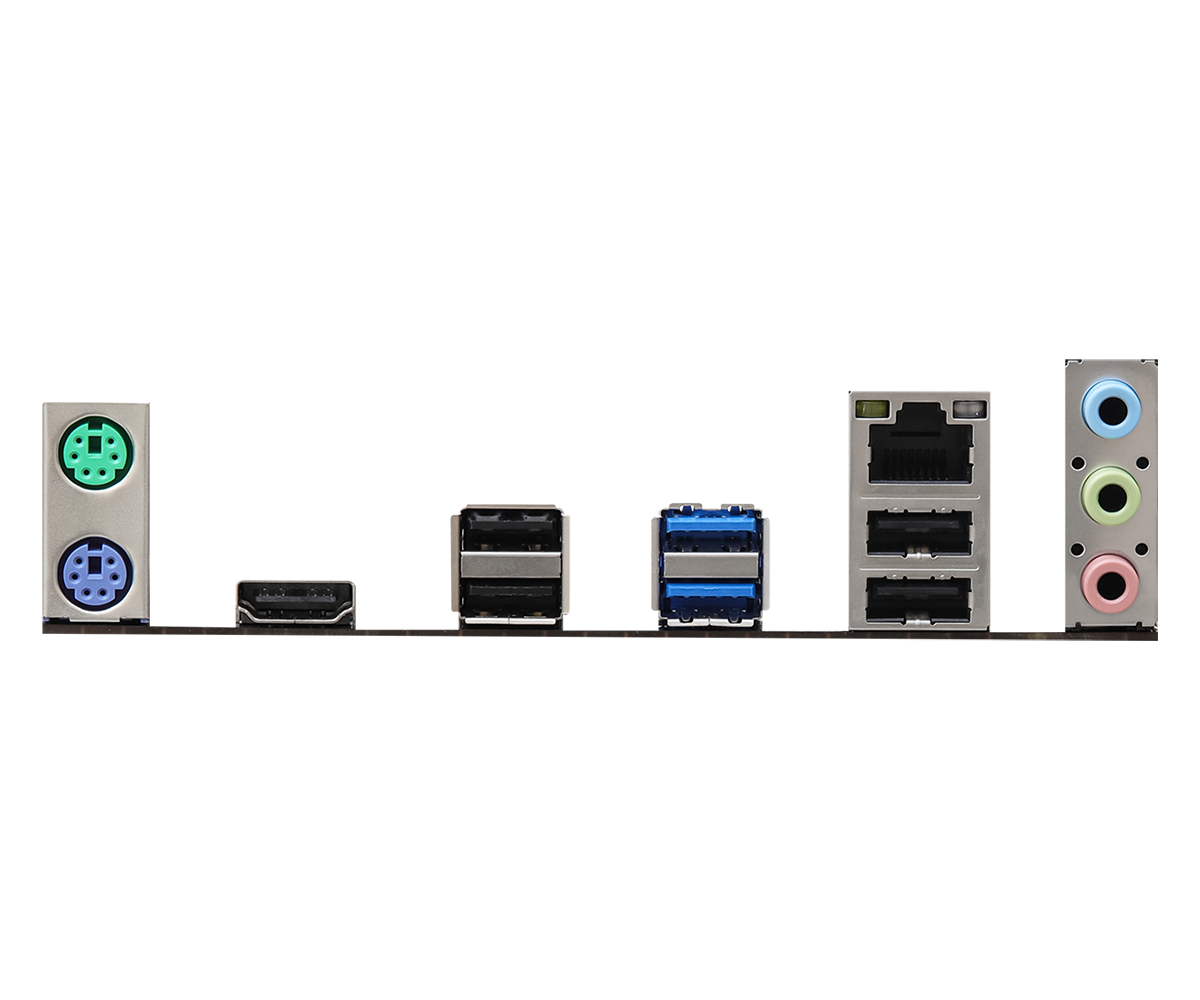

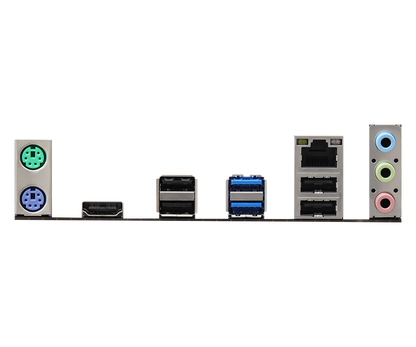

USB Ports

• USB 3.2 Gen1 (Rear):
  • 2 x USB 3.2 Gen1 for high-speed data transfer
• USB 3.2 Gen1 (Front):
  • 2 x USB 3.2 Gen1 for easy front-panel access

Networking

• LAN:
  • Intel® Gigabit LAN for fast and stable internet connection
