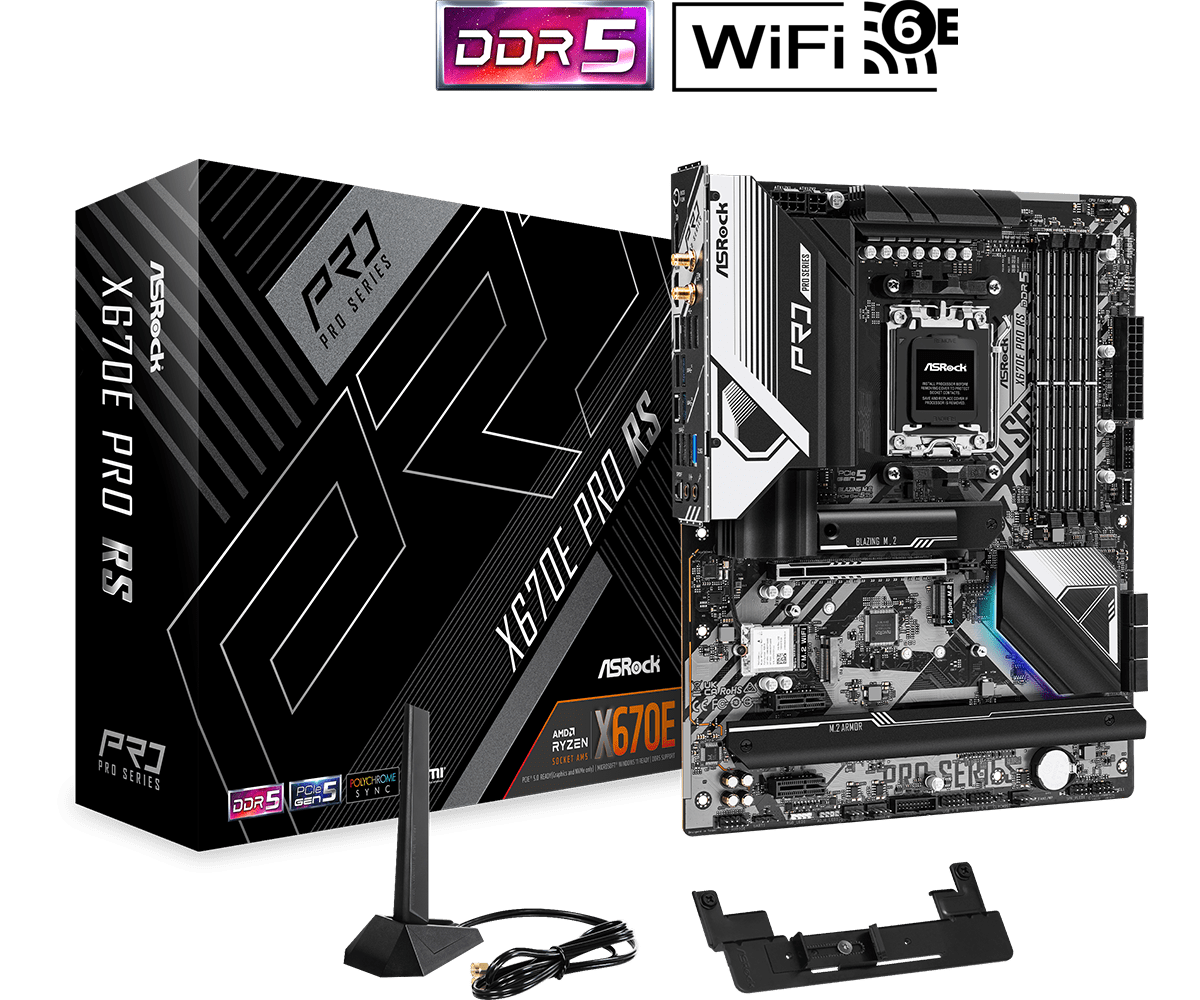

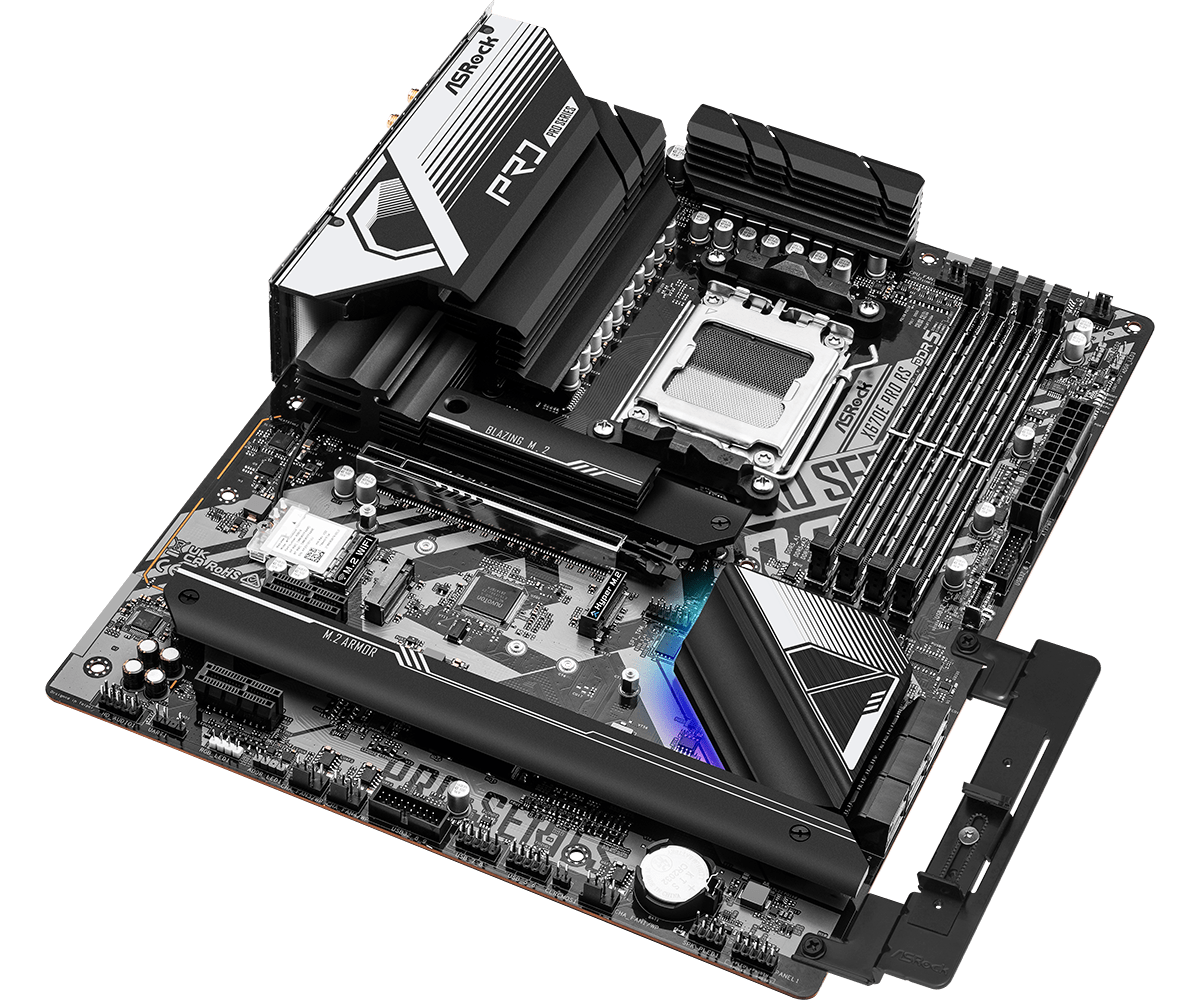

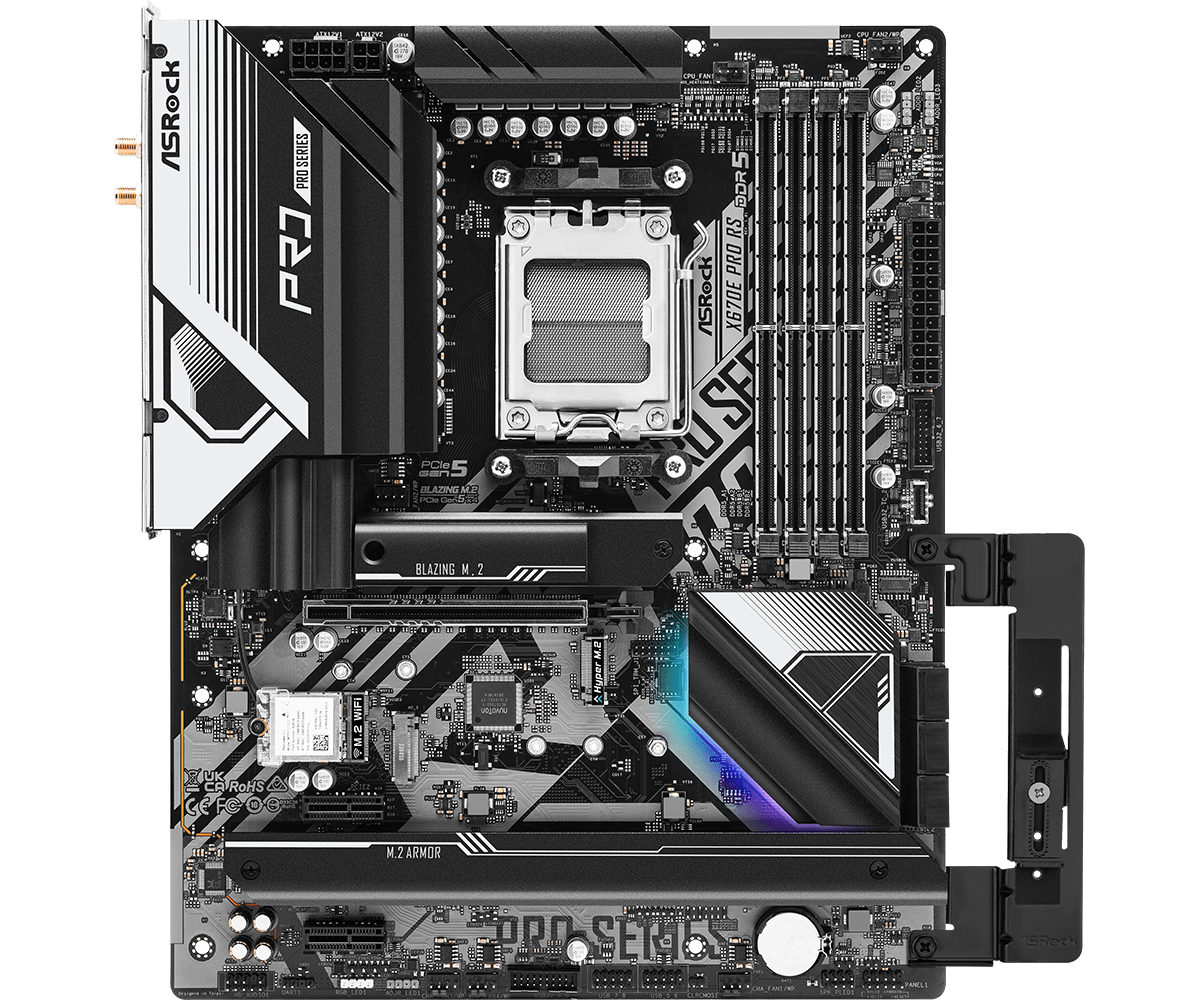

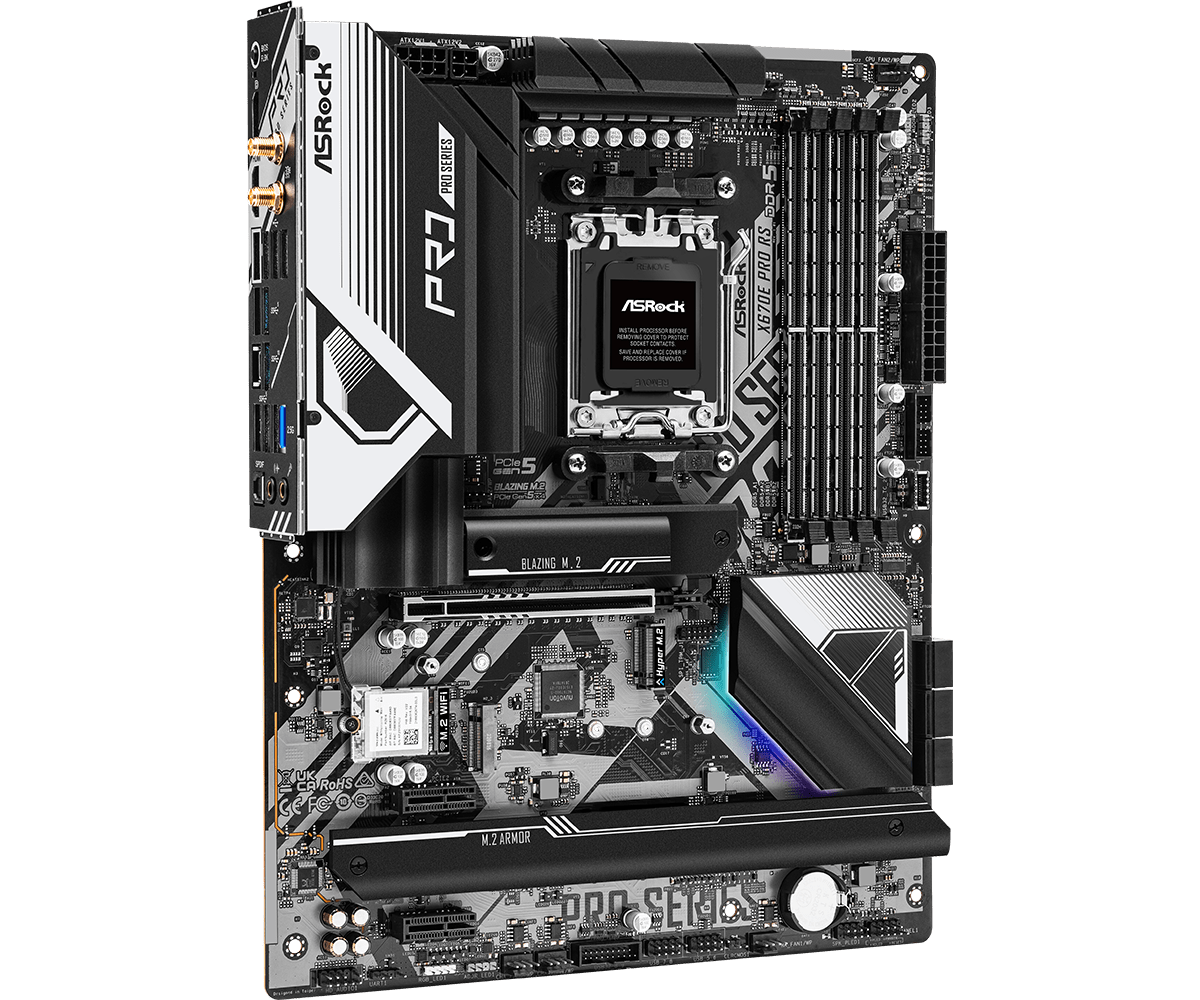

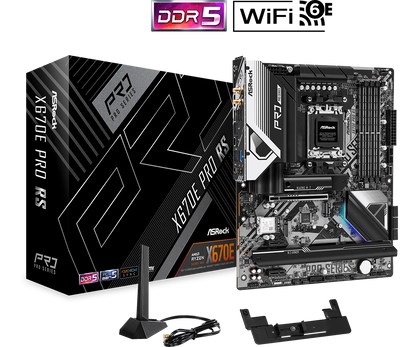

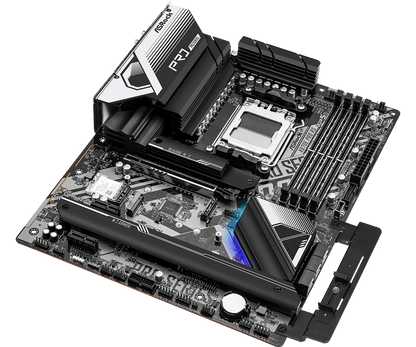

ASROCK X670E Pro RS D5 ATX

General Information

• Model: X670E Pro RS
• Socket Type: AM5
• Supported Processors: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors

Power Design

• Power Phase Design: 14+2+1 Phase Power Design
• Power Delivery: SPS (Smart Power Stage)

Memory Support

• Memory Type: DDR5
• Maximum Memory Capacity: 4 x DDR5 DIMMs
• Memory Speed: Supports Dual Channel, up to 7600+ MHz (OC)

Expansion Slots

• PCIe Slots:
  • 1 x PCIe 5.0 x16
  • 2 x PCIe 4.0 x1
  • 1 x M.2 Key-E for Wi-Fi

Graphics Output

• Graphics Output Options:
  • 1 x HDMI
  • 1 x DisplayPort

Audio

• Audio Codec: Realtek ALC897
• Audio Channels: 7.1 Channel HD Audio
• Additional Feature: Nahimic Audio

Storage

• M.2 Slots:
  • 1 x Blazing M.2 (supports PCIe Gen5 x4)
  • 3 x Hyper M.2 (supports PCIe Gen4 x4)
  • 1 x M.2 (supports PCIe Gen3 x2 & SATA3)
• SATA Connectors: 6 x SATA3

USB Ports

• USB 3.2 Gen2x2:
  • 1 x Type-C (Front)
  • 1 x Type-C (Rear)
  • 1 x Type-A (Rear)
• USB 3.2 Gen1:
  • 8 Ports (4 Rear, 4 Front)

Networking

• LAN: Realtek 2.5G LAN
• Wireless Connectivity:
  • 802.11ax Wi-Fi 6E
  • Bluetooth 5.2

Form Factor

• Form Factor: ATX
