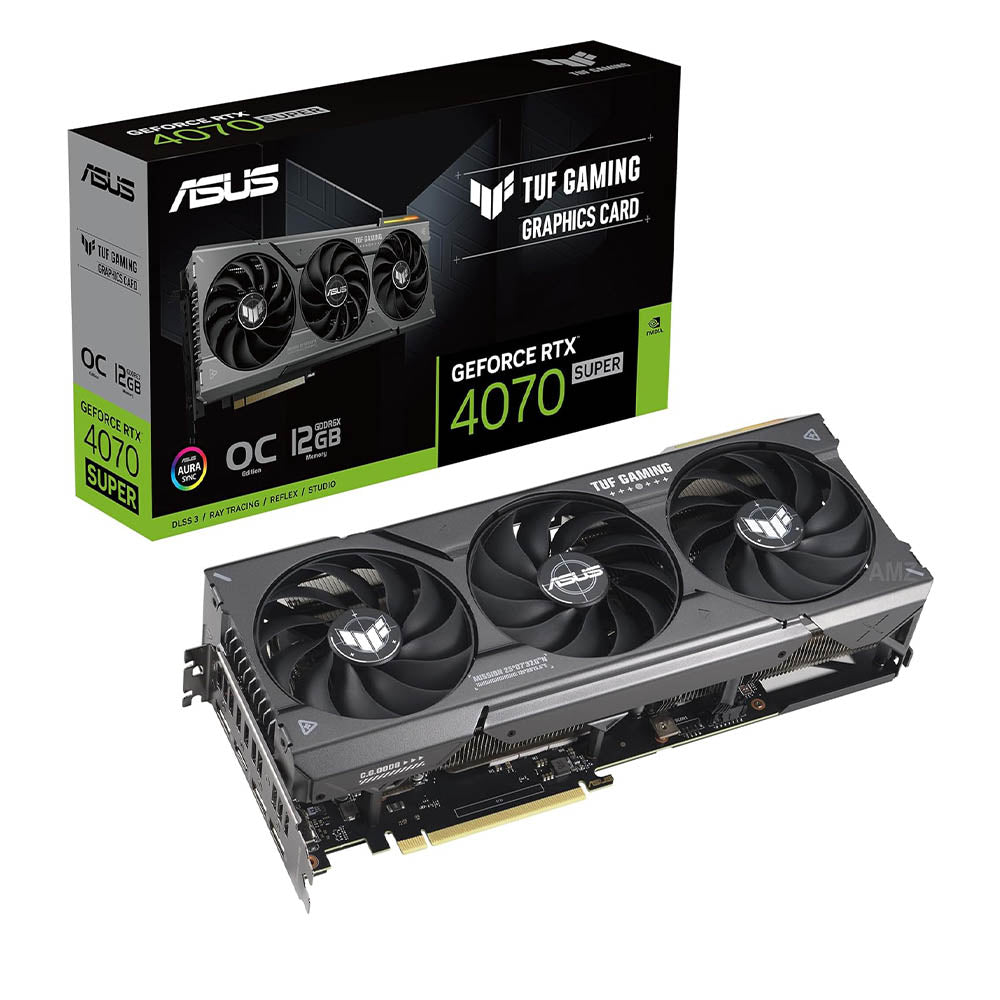

ASUS TUF Gaming GeForce RTX 4070 Super OC Edition

• Brand: ASUS
• Model: TUF Gaming GeForce RTX 4070 Super OC Edition
• GPU Architecture: NVIDIA Ada Lovelace
• Video Memory: 12GB GDDR6X
• CUDA Cores: Approx. 5888 (depends on final configuration)
• Memory Interface: 192-bit
• Boost Clock: Up to 2655 MHz (OC Mode)
• Base Clock: Approx. 2310 MHz
• Interface: PCI Express 4.0

Display and Connectivity:

• Maximum Digital Resolution: 7680 x 4320 (8K UHD)

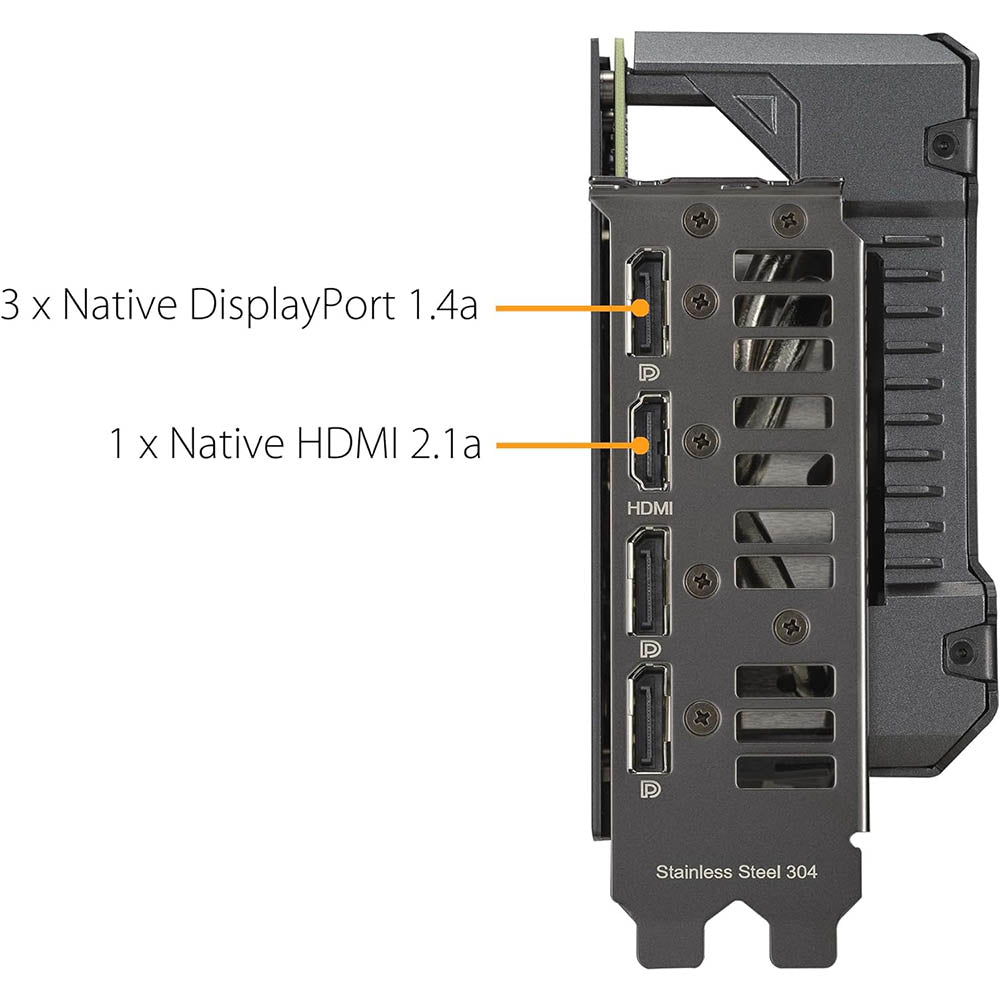

• Display Outputs:
  • 1 x HDMI 2.1a
  • 3 x DisplayPort 1.4a
• HDCP Support: Yes, 2.3

Features:

• Ray Tracing Cores: 3rd Gen (offers better real-time ray tracing performance).
• Tensor Cores: 4th Gen (improved AI and deep learning performance).
• DLSS 3.0: AI-powered performance multiplier that boosts frame rates in games that support it.

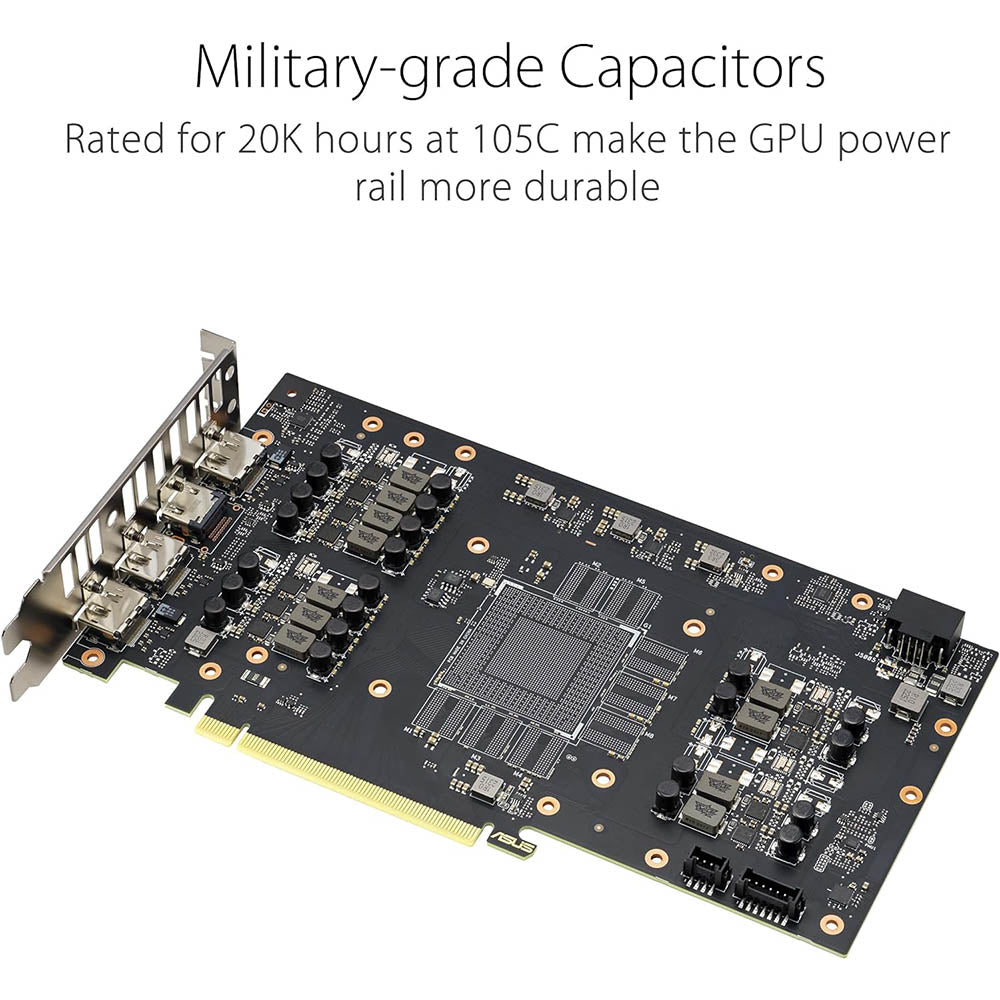

• ASUS Military-grade Components: Designed for durability with capacitors that meet military standards.
• Auto-Extreme Technology: Precision manufacturing process for improved reliability.
• Dual BIOS Mode: Quiet and Performance modes for customizable fan profiles.
• NVIDIA Reflex: Reduces system latency for competitive gaming.

Cooling System:

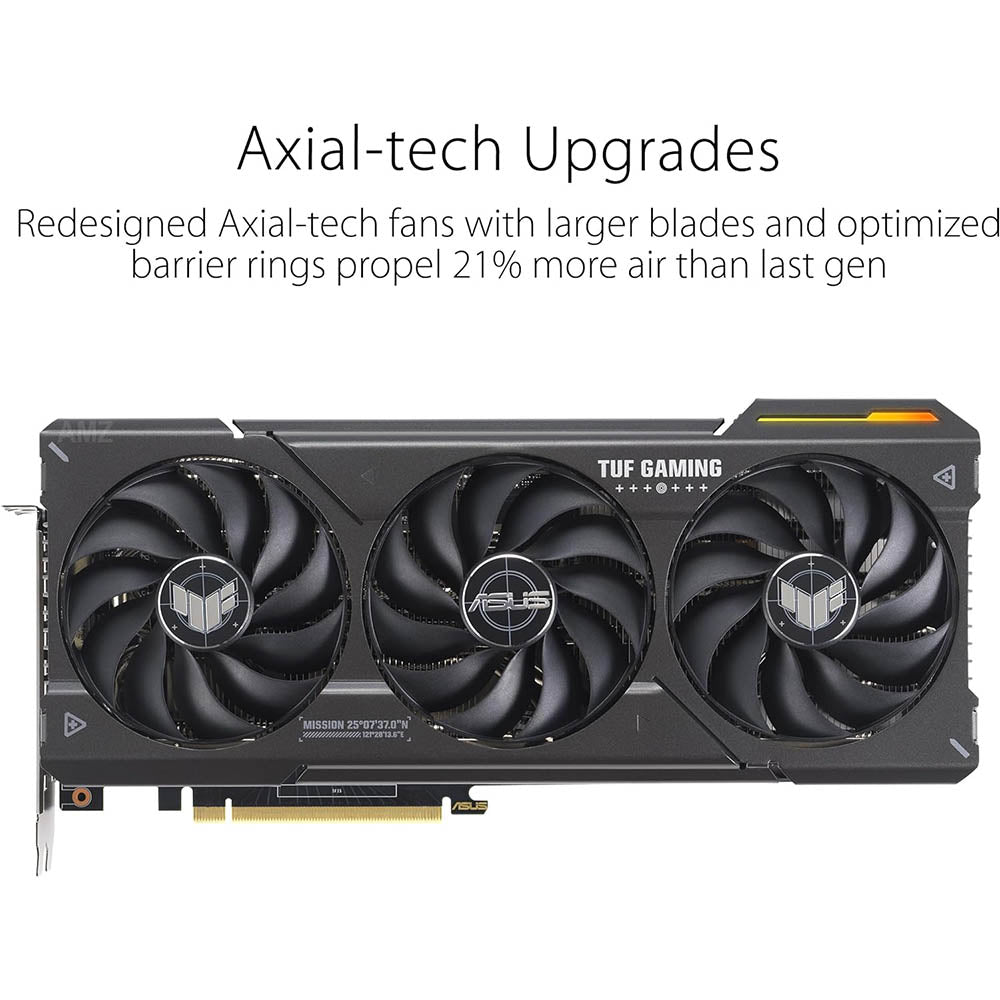

• Axial-tech Fan Design: Dual ball fan bearings and larger fans for enhanced airflow.

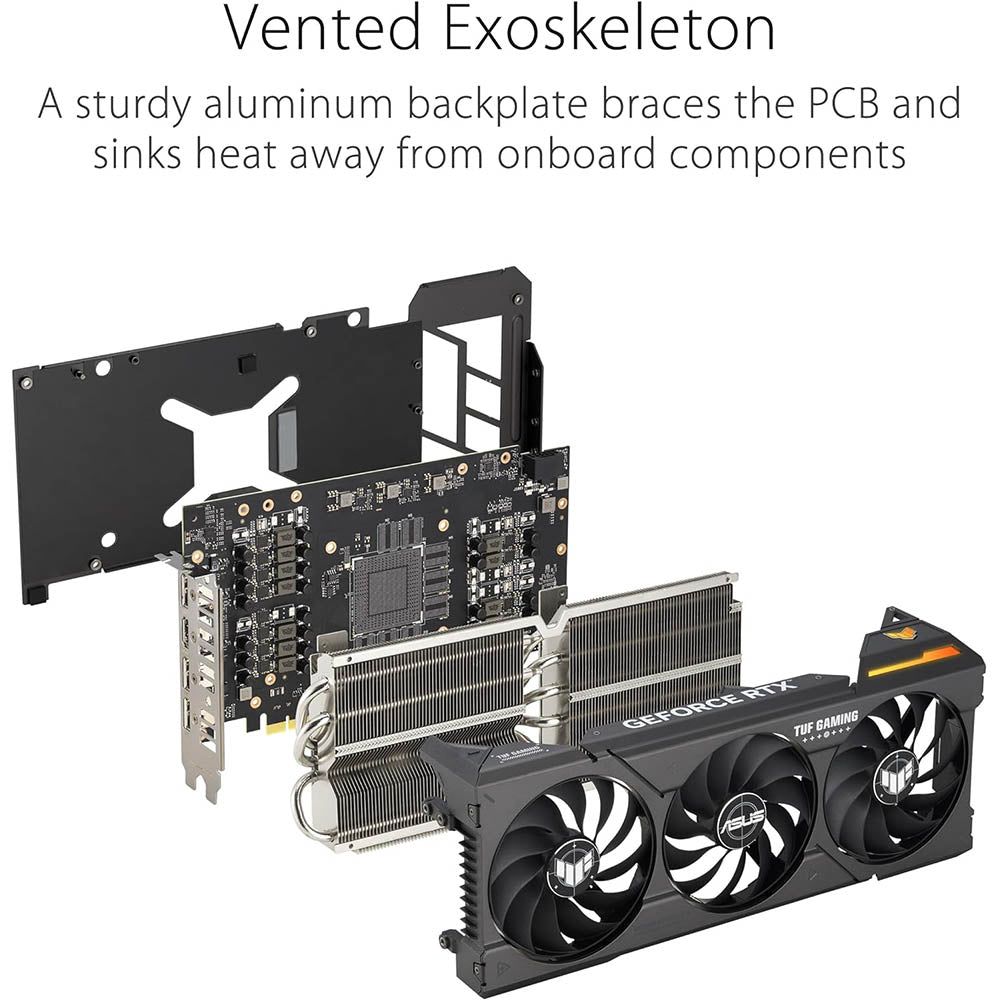

• TUF Design: Built with military-grade components and reinforced with a metal backplate for improved durability and cooling.
• 0dB Technology: Fans remain off during low-load situations for silent performance.

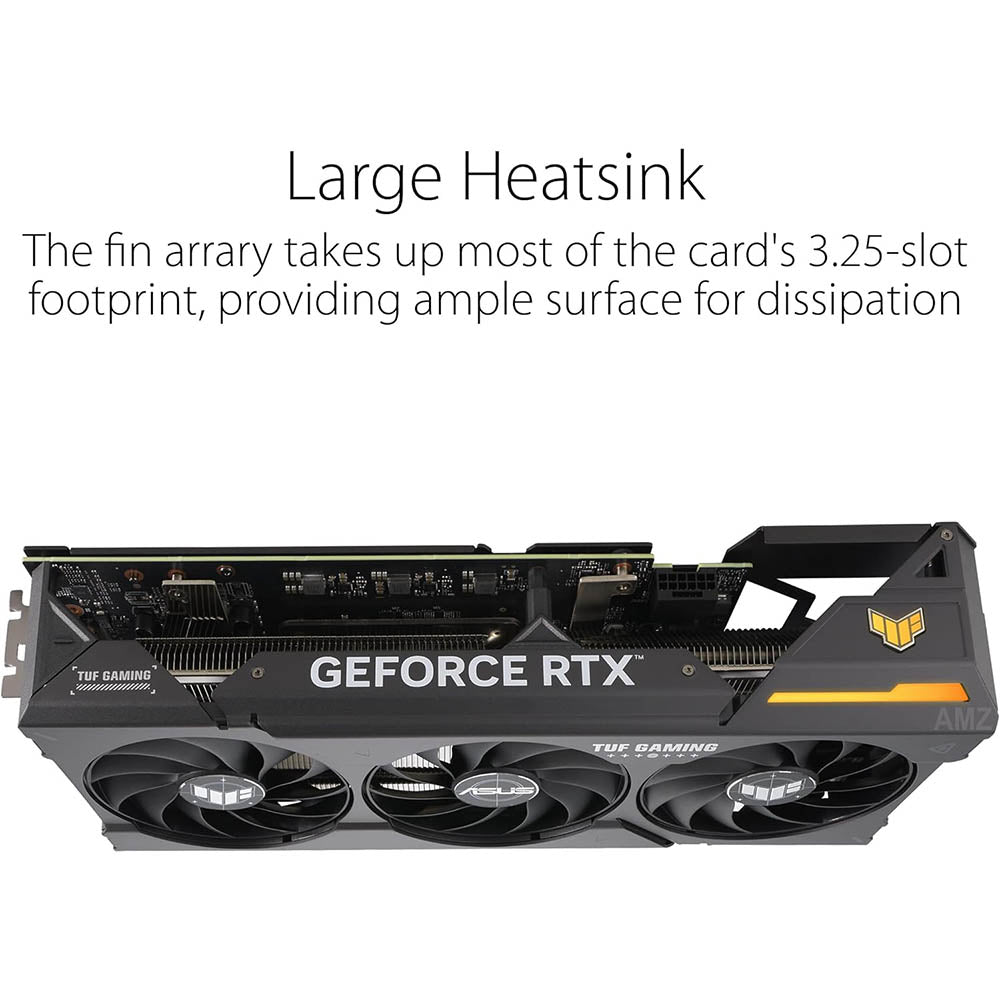

• Heatsink: Extra-thick for superior heat dissipation.

Power Requirements:

• Recommended PSU: 700W+
• Power Consumption: Estimated at 250W+
• Power Connector: 1 x 16-pin (12VHPWR connector)

Dimensions:

• Card Dimensions: 305mm x 138mm x 65mm (varies depending on model)
• Form Factor: 3.5-slot design, making it suitable for larger cases with proper airflow.

Additional Features:

• TUF Design Language: The card sports an industrial aesthetic, with armor-like shrouds and reinforced construction for increased toughness.
• RGB Lighting: Customizable RGB lighting with Aura Sync compatibility for seamless lighting across components.
