GALAX Revolution-07 WHITE Gaming Case, ATX, 4 Fan

General Information:

• Form Factor Compatibility:
  • ATX, Micro-ATX, Mini-ITX
• Chassis Material:
  • SPCC Steel and Tempered Glass
• Power Supply Unit (PSU) Form Factor:
  • ATX, supports PSU dimensions up to ≤160mm or ≤140x150x86mm

External Features:

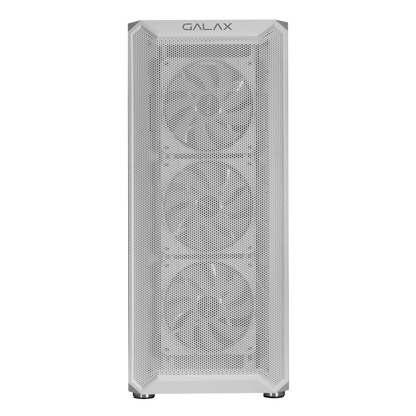

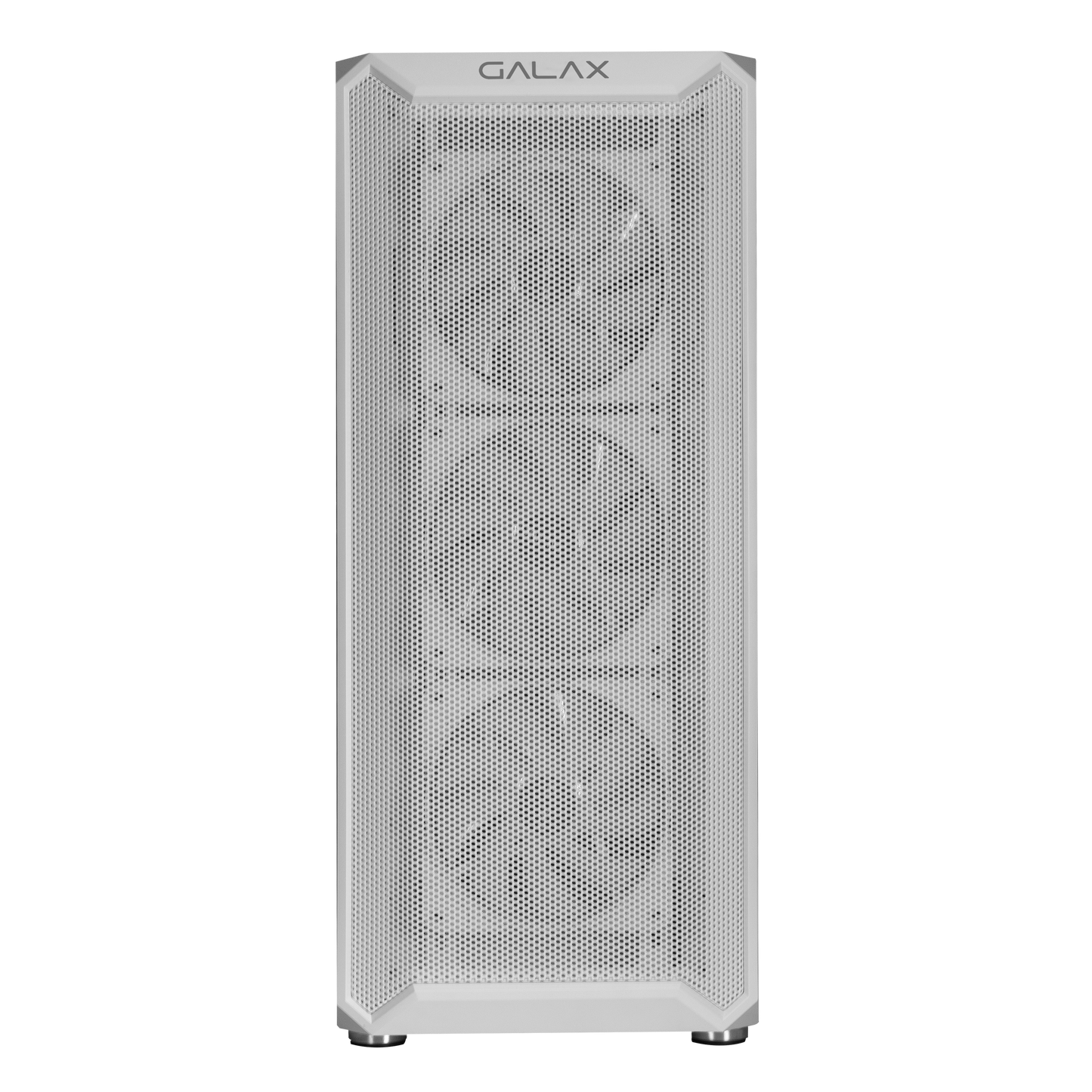

• Front Panel:
  • ABS with a Mesh Cover for enhanced airflow
• Top Panel:
  • Metal Cover for sturdy protection
• Side Panels:

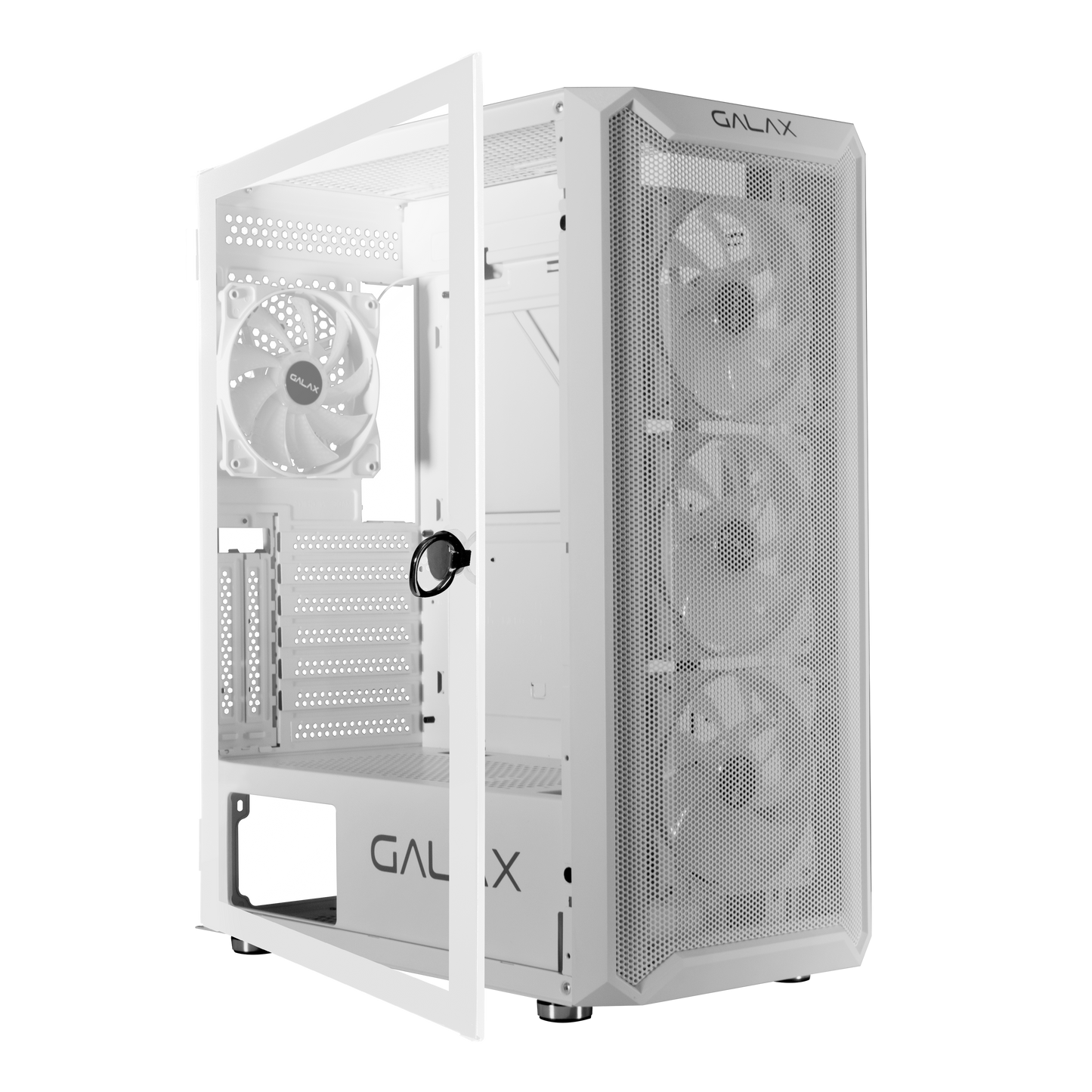

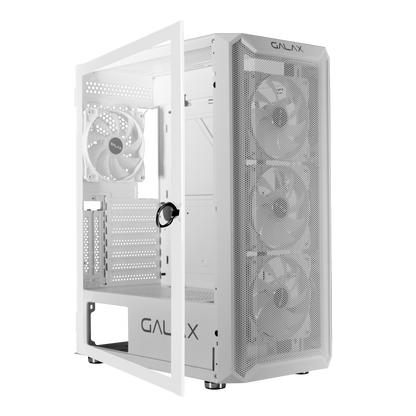

  • Left Panel: Tempered Glass to showcase internal components
  • Right Panel: Metal Cover for cable management and structure

Drive Bays:

• Internal Drive Bays:
  • 3.5" (HDD): 2 bays
  • 2.5" (SSD): 3 bays

I/O Ports & Controls:

• Buttons:
  • 2 Power/Reset Buttons
• USB Ports:
  • USB 2.0: 2 Ports
  • USB 3.0: 1 Port
  • USB 1.1: None
• Audio Support:
  • 1 HD Audio Port

Cooling Support:

• Fan Support:
  • Front: 3 x 120mm (optional)
  • Top: 2 x 120mm or 2 x 140mm (optional)
  • Rear: 1 x 120mm (optional)
  • Side: None
• Water Cooling Radiator Support:
  • Front: 240mm, 280mm, or 360mm
  • Top: 240mm, 280mm
  • Rear: 120mm

Physical Dimensions:

• Chassis Dimensions: (L) 350mm x (W) 205mm x (H) 470mm
• Full Case Dimensions (including Fascia): (L) 400.6mm x (W) 205mm x (H) 481.5mm
• Carton Dimensions: (L) 532mm x (W) 258mm x (H) 465mm

Weight:

• Net Weight: 4.3 kg
• Gross Weight: 4.95 kg

Component Compatibility:

• VGA Card Length: Up to 330mm
• CPU Cooler Height: Up to 160mm
• Cable Management Depth: 18mm

Additional Features:

• Included RGB Fans:
  • 4 RGB Fans pre-installed for enhanced lighting and cooling performance
