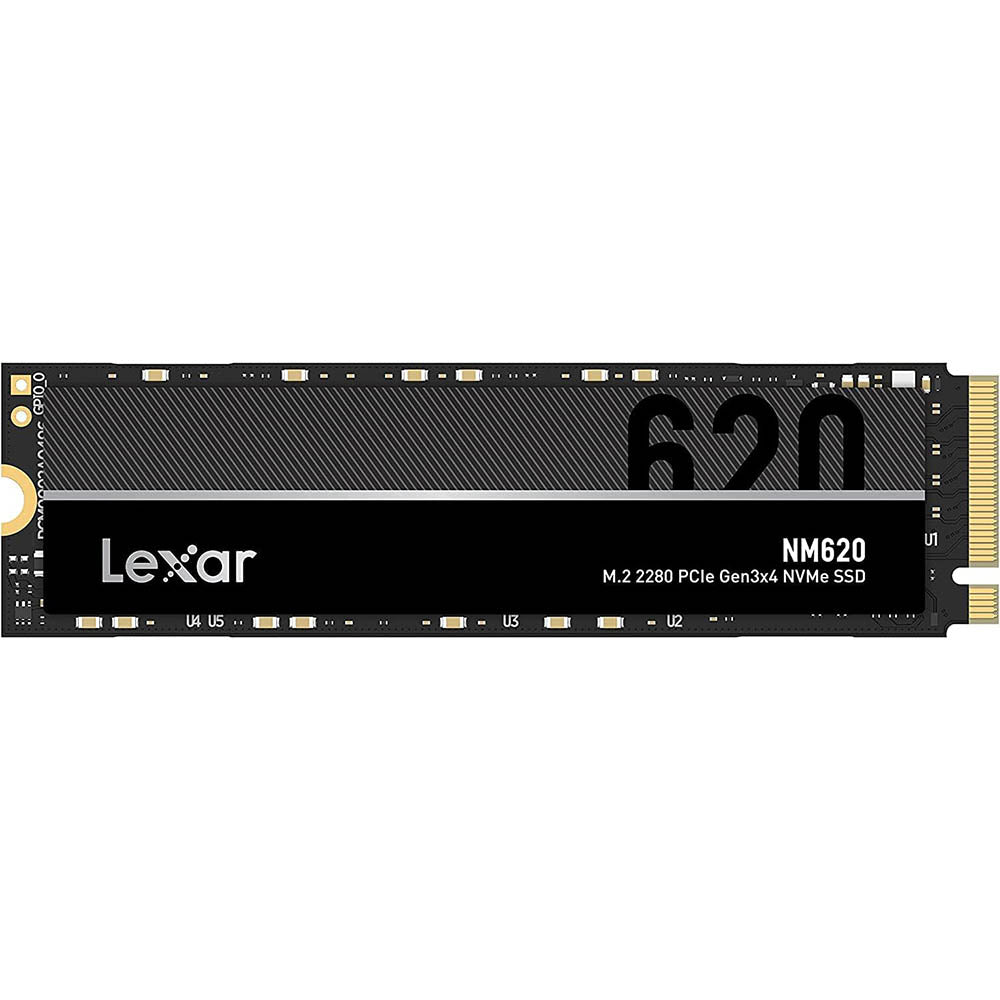

Lexar NM620 M.2 2280 NVMe SSD – 256GB/512GB/1TB/2TB, PCIe Gen3x4, Up to 3300MB/s, Compact & Reliable Performance Boost

General:

• Model: Lexar NM620
• Form Factor: M.2 2280

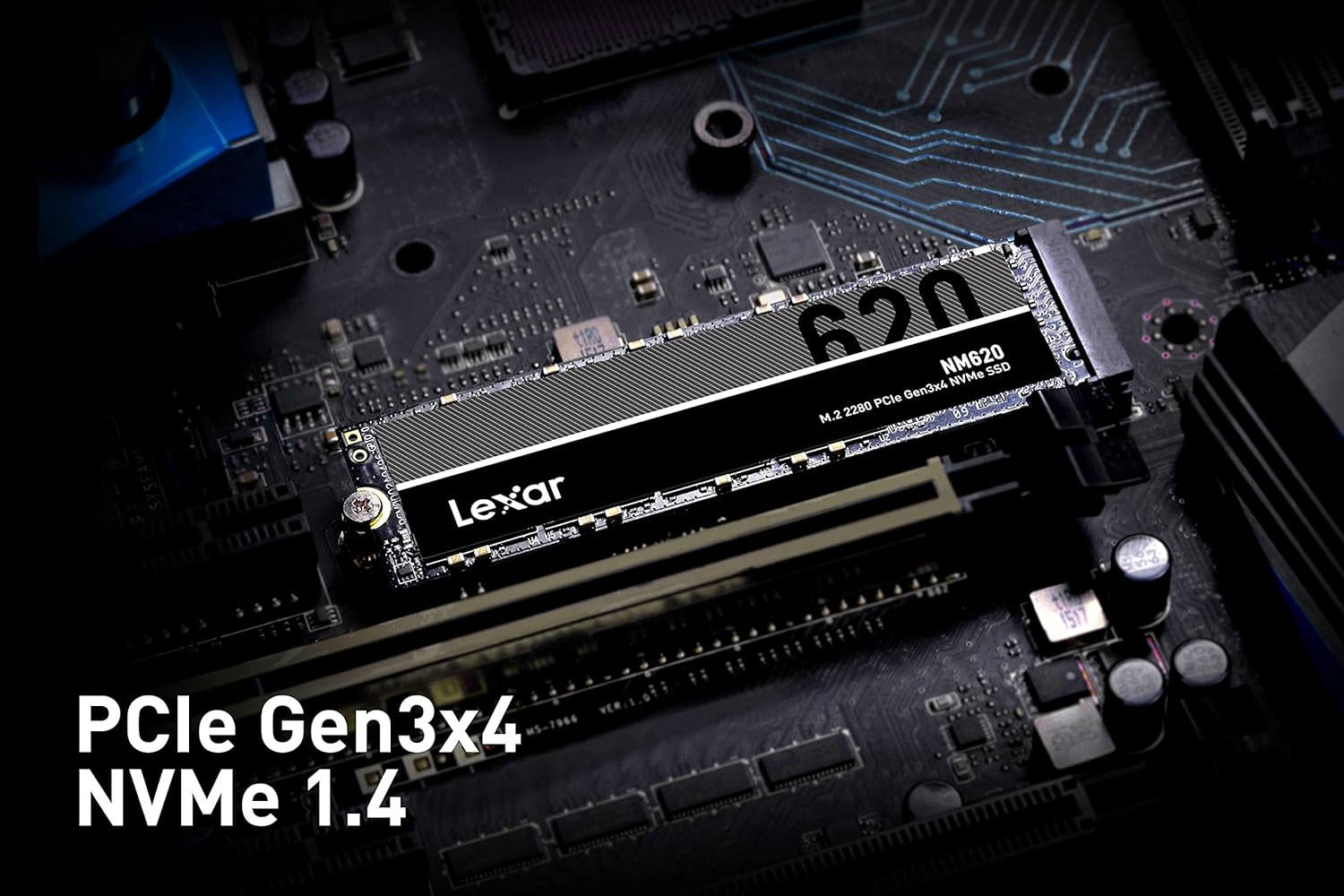

• Interface: PCIe Gen 3x4 NVMe 1.4
• Capacities Available: 256GB, 512GB, 1TB, 2TB

Performance:

• Sequential Read Speed:
  • 256GB: Up to 3000MB/s
  • 512GB: Up to 3300MB/s
  • 1TB: Up to 3300MB/s
  • 2TB: Up to 3300MB/s
• Sequential Write Speed:
  • 256GB: Up to 1300MB/s
  • 512GB: Up to 2400MB/s
  • 1TB: Up to 2400MB/s
  • 2TB: Up to 2400MB/s
• Random Read IOPS: Up to 200,000 IOPS
• Random Write IOPS: Up to 256,000 IOPS

Endurance:

• MTBF (Mean Time Between Failures): 1.5 million hours
• TBW (Total Bytes Written):
  • 256GB: 125 TBW
  • 512GB: 250 TBW
  • 1TB: 500 TBW
  • 2TB: 1000 TBW
• Reliability: Built-in error correction code (ECC) technology

Power & Efficiency:

• Power Consumption (Active): 3.3W (typical)
• Power Consumption (Idle): 0.03W (typical)

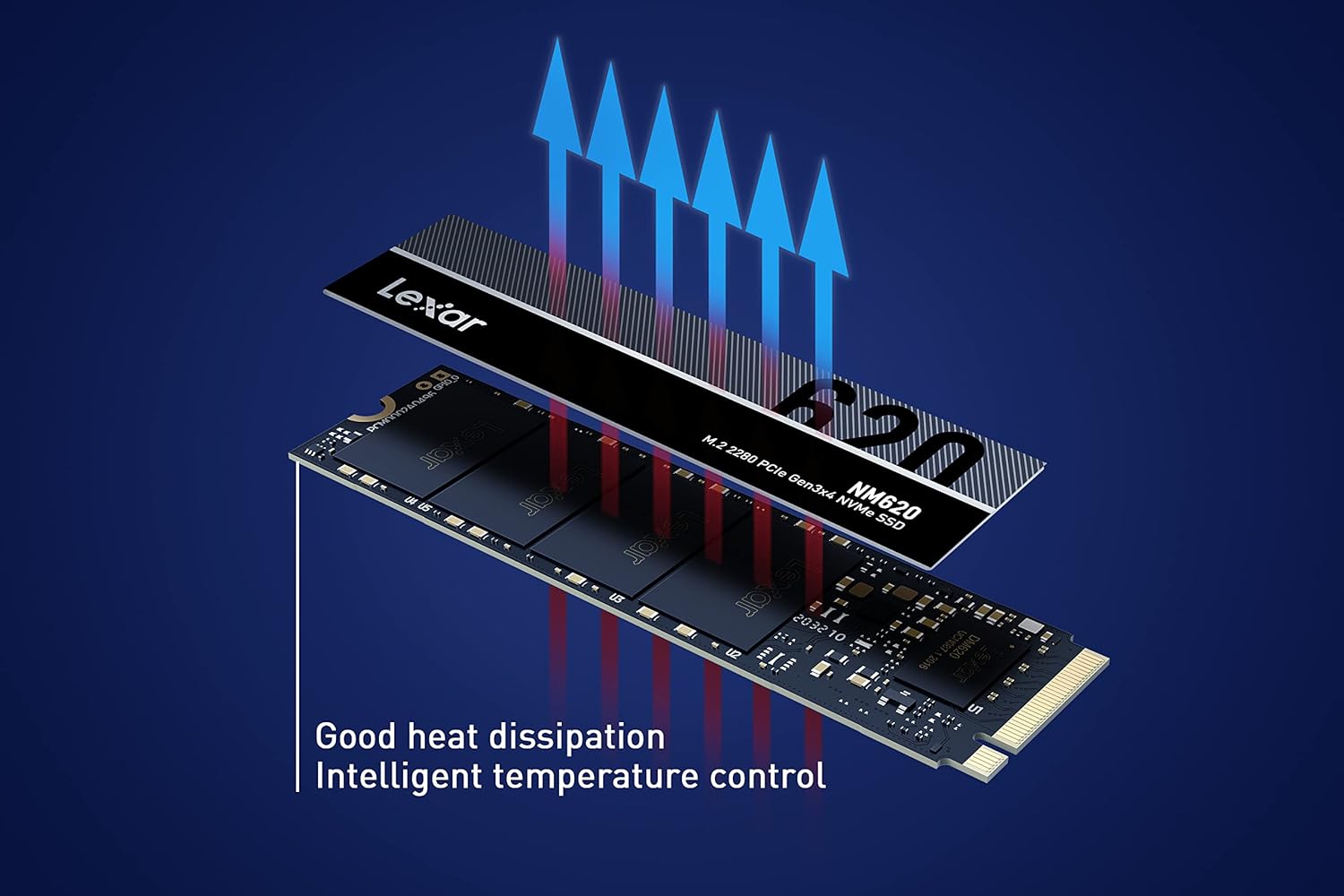

• Thermal Throttling: Yes, advanced thermal management

Physical Specifications:

• Form Factor: M.2 2280
• Dimensions: 80mm x 22mm x 2.25mm
• Weight: 9g

Operating Conditions:

• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Shock Resistance: 1500G/0.5ms
• Vibration Resistance: 10~2000Hz, 1.5mm/20G

Compatibility:

• Interface: PCIe Gen 3x4, backward compatible with PCIe Gen 3x2
• System Support: Windows, Linux
