MSI GAMING GEFORCE RTX 4060 TI X 16GB

• Brand: MSI
• Model: GeForce RTX 4060 Ti X 16GB
• GPU Architecture: NVIDIA Ada Lovelace
• Video Memory: 16GB GDDR6
• CUDA Cores: 4352
• Memory Interface: 128-bit
• Boost Clock: Around 2580 MHz (varies by model and overclocking potential)
• Base Clock: Approx. 2310 MHz
• Interface: PCI Express 4.0

Display and Connectivity:

• Maximum Digital Resolution: 7680 x 4320 (8K UHD)

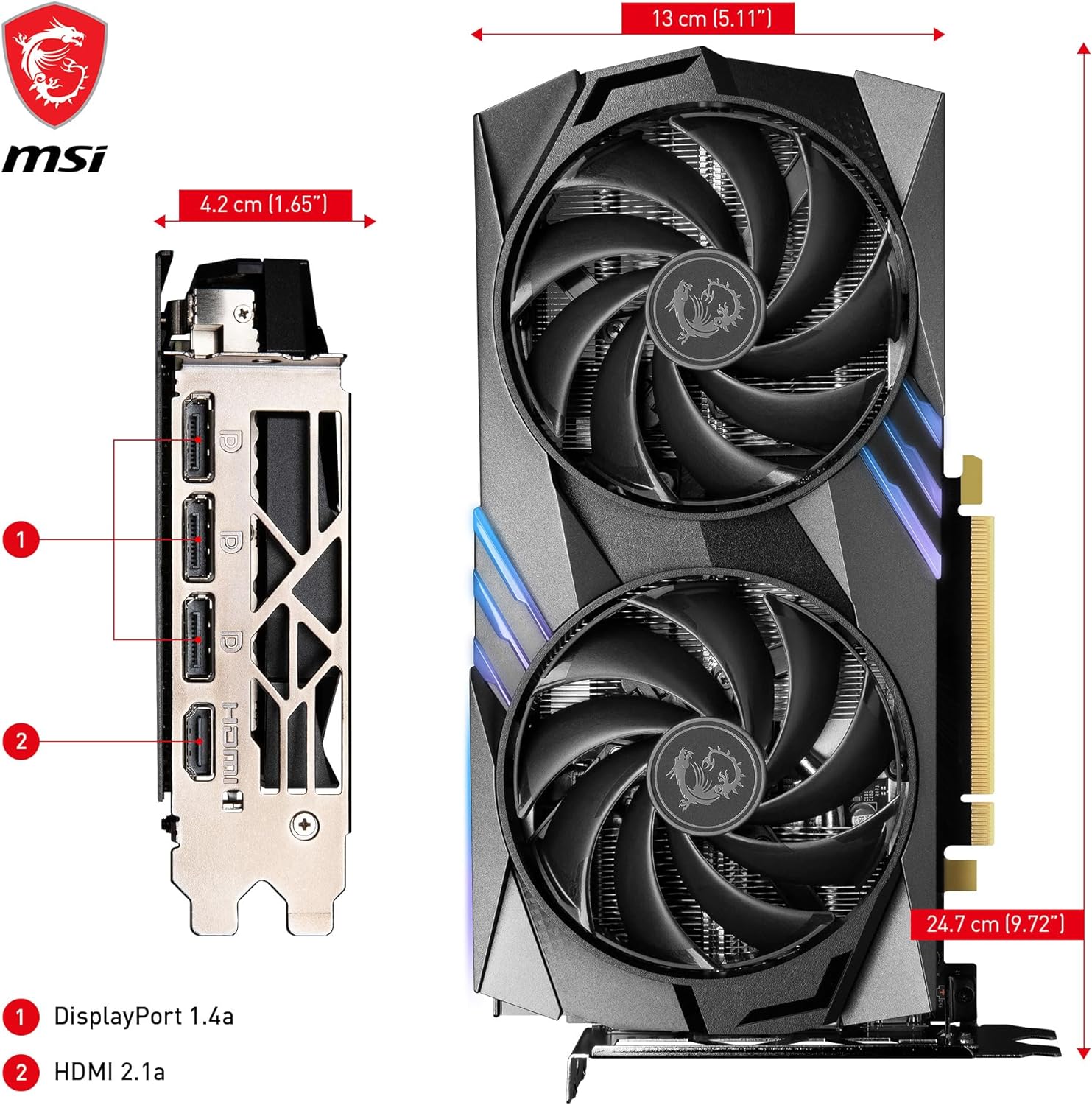

• Display Outputs:
  • 1 x HDMI 2.1
  • 3 x DisplayPort 1.4a
• HDCP Support: Yes, HDCP 2.3

Features:

• Ray Tracing Cores: 3rd Gen, supporting real-time ray tracing for enhanced visual fidelity.
• Tensor Cores: 4th Gen, improving AI-driven features like NVIDIA DLSS 3.0 for performance boosts.
• DLSS 3.0: AI-powered frame generation for enhanced gaming performance.
• MSI TORX FAN 5.0: Triple fan design with a unique blade setup for better airflow and cooling efficiency.
• MSI Mystic Light: RGB lighting customization, syncs with other components using MSI Mystic Light software.
• Zero Frozr Technology: Fan-stop technology during low-load operations for silent performance.

Cooling System:

• Heatsink Design: MSI's TRI FROZR 3 thermal design with Core Pipe for enhanced cooling and heat dissipation.
• Fans: Triple-fan configuration with TORX Fan 5.0 for increased static pressure and cooling.
• Thermal Pads: Extensive use of thermal pads to ensure efficient heat transfer.

Power Requirements:

• Recommended PSU: 600W+
• Power Consumption: Approx. 165W
• Power Connector: 1 x 8-pin PCIe connector

Dimensions:

• Card Dimensions: Approx. 305 mm x 130 mm x 52 mm
• Form Factor: 2.5-slot design, suited for medium to large cases.

Additional Features:

• NVIDIA Reflex: For low-latency gaming, improving responsiveness in competitive games.
• RTX IO: Accelerated loading times and faster performance using GPU-accelerated storage and decompression.
